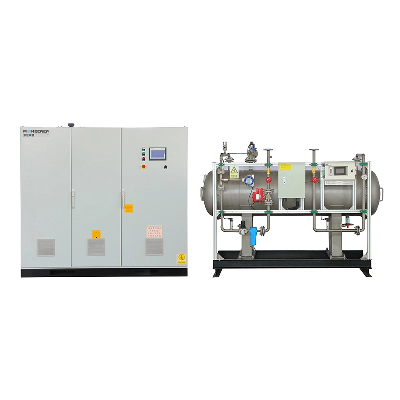

Industrial Ozone Generator for Disinfection and Water Treatment

Air Source Ozone Generator Technical ParametersModelOzone productionFeed gas flowOzoneConcentrationCooling water flowPower consumptionElectronic Control CabinetDimension(mm)Ozone discharge chamber Dimension (mm)kg/hNm³/hwt%m³/hKwh/kgO³W D HW D HPOZBA-1K126-392-33-414-17800x800x1800900x800x1800POZBA-2K252-772-36-814-172000x900x18002100x900x1800POZBA-3K377-1152-39-1214-172000x900x18002100x1000x1900POZBA-4K4105-1552-312-1614-172200x1000x20002100x1100x2000POZBA-5K5130-1902-315-2014-173300x1100x20402200x1200x2100POZBA-6K6155-2302-318-2414-173300x1100x20402200x1200x2100POZBA-8K8205-3102-324-3214-173700x1200x20403800x1000x2100POZBA-10K10260-3902-330-4014-174000x1200x21403800x1200x2100POZBA-15K15390-5802-345-6014-174500x1200x22503900x1200x2100POZBA-20K20515-7552-360-8014-175600x1200x23503900x1300x2300POZBA-25K25640-9602-375-10014-175600x1200x23503900x1400x2400POZBA-30K30775-11602-3100-12014-176000x1200x23503900x1500x2500POZBA-40K401030-15502-3120-16014-176200x1600x22504000x1800x2700POZBA-50K501290-23202-3150-20014-178500x1600x23504000x2000x2850Oxygen Source Ozone Generator Technical ParametersModelOzone productionFeed gas flowConcentrationCooling water flowPower consumption Electronic Control CabinetDeimension(mm)Ozone discharge chamber Dimension (mm)kg/hNm³/hwt%m³/hKwh/kgO³W D HW D HPOZBO-1K17-98-101.5-214-17700x800x1800800x800x1800POZBO-2K214-188-103-414-17800x800x1800900x800x1800POZBO-3K321-268-104.5-614-171200x1000x1900800x1000x1900POZBO-4K428-398-106-814-172000x900x18002100x900x1800POZBO-5K534-438-107.5-1014-172000x900x18002100x1000x1900POZBO-6K641-528-109-1214-172000x900x18002100x1000x1900POZBO-8K855-698-1012-1614-172200x1000x20002100x1100x2000POZBO-10K1068-868-1015-2014-173300x1100x20402200x1200x2100POZBO-15K15102-1288-1017.5-3014-173700x1200x20403800x1000x2100POZBO-20K20136-1718-1030-4014-174000x1200x21403800x1100x2100POZBO-25K25170-2108-1036-5014-174000x1200x21403800x1200x2100POZBO-30K30203-2568-1045-6014-174500x1200x22503900x1200x2100POZBO-40K40271-3418-1060-8014-175600x1200x23503900x1300x2300POZBO-50K50339-4268-1075-10014-175600x1200x23503900x1400x2400POZBO-60K60406-5118-1080-12014-176000x1200x23503900x1500x2500POZBO-70K70485-6258-10105-14014-176200x1600x22503900x1600x2600POZBO-80K80542-6818-10120-16014-176200x1600x22504000x1800x2700POZBO-100K100677-8528-10150-20014-178500x1600x23504000x2000x2850Note1. Power consumption is based on different ozone concentration and cooling water conditions.2. Customerize for higher ozone concentration ozone generator.Flue Gas DenitrificationThe advantages of ozone denitrification technologyLow temperature flue gas treatment has nothing to do with the front-end combustion process and has no influence on operation.Suitable for all kinds of flue gas environment, such as power plant boiler, garbage incinerator, cement kiln, sintering plant flue gas treatment and other complex environment.The implementation of simultaneous desulfurization and degradation of organic mercury removal and denitrification, achieve a removal tower. No NH3 denitration is achieved, no ammonia leakage and two pollution risks.Application areaAll kinds of coal-fired boilers, gas fired boilers and flue fired boilersSteel mill sintering machine and other mental smelting furnacesVarious glass furnaces and cement processing furnacesCombustion furnace of all kinds of wasteNo acid gas flow in various chemical processesFlue gas of various petroleum catalytic cracking unitsRefuse incineratorOur Products advantageAll in one equipment, easy to operateOver temperature protection, over-current protection, and over-voltage abnormality monitoring. Ozone leakage alarm, operation fault alarm monitoringSupply full set of auxiliary equipment, including air compressor, gas storage tank, filter, freezing dryer, adsorption dryer etc. Use special stainless steel tube for discharge chamberWith SIEMENS PLC touch screen automatic control system, users can achieve monitoring, control, switching, setting, report, alarm, cycle start-up, emergency shutdown etc. functions. Our Core Technology  1. Ozone discharge chamber technologySpecial glass tube discharge chamber(Patent No ZL2011 2 0385785) adopts double air gap discharge technology, high quality glass medium and matching dedicated power supply, fully exerts the efficiency of corona discharge to produce ozone, ensuring large output, high concentration and lower power consumption.2. High power ozone dedicated dry-type transformer technologyThe high voltage transformer converts the alternating current output from the inerter circuit into high voltage electricity suitable for generation of ozone by generating a dielectric barrier discharge in the chamber discharge body. In order to match the capacitive characteristics of the occurrence of the discharge of the chamber discharge body, the requirements of its parameters are different from those of ordinary transformers.3.Ozone special frequency conversion power supply technologyThe ozone generator control system is independently develo
