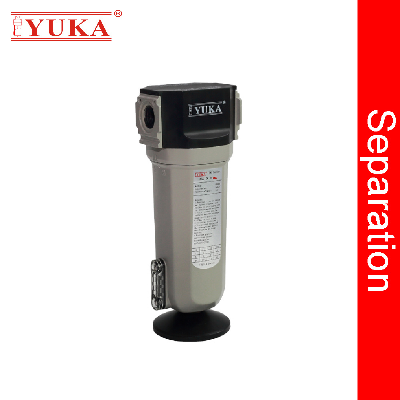

High Speed Cyclone Air Water Separator From Factory (TWS014)

Problem in compressed air systemThere is large amount of water in compressed air system, which will corrode the pipeline, damage the valves permanently, air cylinders and pneumatic tools and devices, reduce efficiency of the after-cooler/ heat exchanger.TWS Series water separator with high efficiency of separated gas and water, according the grativity,high speed cyclone rotate to distinguish the water and water, condensate will be remove by the auto inner drain. Zero pressure loss and save power and save your money.Product Feature* 99.73% efficiency of condensate removal* Inside & Outside resistace corrosion Treatment, prevent second pollution* Grade A aluminum alloy material, Maxi. pressure up to 1.0 Mpa*  For large side connection, Flange connected availableTechnical SpecificationThe flow rate below is the treatment capacity of compressed air under rated working pressure 7 bar g (100psi g).For the application in other working pressure, please refer to the correction factors:  ModelPipe SizeFlow ratesDimension(mm)L/Sm³/mincfmW(Weight)H(High)ABC (clearance for housing)TWS009RC1/4"15.0 0.9 31.8 8119724.6173.950.5TWS010RC3/8"25.1 1.5 53.0 8119724.6173.950.5TWS011RC1/2"46.8 2.8 98.8 10824930.1220.653.3TWS012RC3/4"66.8 4.0 141.2 10824930.1220.653.3TWS014RC3/4"86.8 5.2 183.6 10828930.1260.653.3TWS016RC1"130.3 7.8 275.3 13333240.729159.6TWS018RC1-1/2"175.4 10.5 370.7 13333240.7359.859.6TWS020RC2"300.0 18.0 636.0 17061752.92662.9759.6Technical requirementsMaximum operating pressure: 10 barg   Operating temperature:1.5°C~ 80°C  PressureBarg12345678910111213141516Psig152944597387100116131145160174189203219232Correction factor0.380.530.650.760.850.931.001.071.131.191.231.311.361.411.461.51Picture              YUKA Servicea. Providing professional consultation, technical support and special solutionsb. Providing timely feedback on complaintsc. Providing perfect after sales service and warrantyQ:Why choose us?a. 24 years' practical experiences in R&D and manufacturing Compressed air treatment;b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;c. ISO 9001:2015, CE and product follow ISO8573-1;d. With Germany Imported high efficiency filtration Test Instrument;e.All goods had been 100% test before dispatched.  Frequently Asked QuestionsQ1. What kind of your company is it?We're the manufacturer integrated with R&D, production and sales. Q2. How about your technical conditions and production capability?Complete process documents and equipment, mass production.  Q3. What is the delivery time?Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment. Q4. Do you have a warranty?Yes, for filter, it is 1 year normally. Q5. Can you supply customized product?Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
