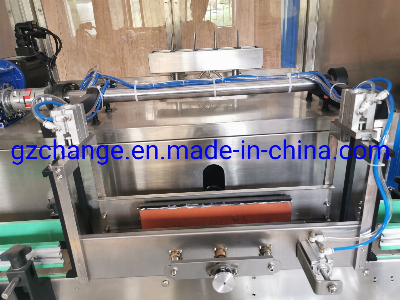

Bottle Air Bottle Washing Machine +UV Sterilization Tunnel

Product introduction:USXP series is the product which our factory has large output for the past few years. Its advantages of simple structure, easy operation, easy to clean, low cost make it deeply favored by pharmaceutical factories. It can be used for washing of molded vial and big volume plastic, glass bottles. The replacement parts can be easily changed.Working principle:This machine mainly consists of bottle unscrambling turntable, bottle inverted track, coarsely washing and finely washing tank. Coarsely washing means washing the inner and outer wall of the bottles by the power of ultrasonic wave. Finely washing adopts powerful high pressure purified water, injection water and compressed air to back wash the inner and outer wall of the bottles alternately. It can reach the required quality standard of pharmaceutical companies. Washing process: The turntable pushes the bottles into the star wheel then to the bottle twisted track. With the help of star wheel, the bottles rotate 360 degree in the track, and rinsed by water and air. Finally, the washed bottles will be pushed into the tunnel oven or bottle-collecting table or convoying belt. Characteristic:1.Ultrasonic wave can clean the wall of the vial, the cleaning effect is good, and the speed is adjustable by inverter.2.Clean high-pressure compressed air & water can wash the wall of the vial/bottls thoroughly.3.Separatly coarsely washing & finely washing, no overlapping pollution.4.Track-type bottle-in & bottle-out, with low bottle breakage ratio.5.Compact Structure; space-saving, with stainless steel water tank layer layout. The used water can be reused as recirculation water after filtering, thus achieving good cleaning effect and reducing the production cost to large extent..6.Easy operation and fully automatic control.7.Suitable for vials with different specifications. The change part is easy to replace.8.Can be used as single machine or linked to production line. Technical parameters:Suitable bottles2ml & 5mlWashing speed100bottles/minPower supply380V 50/60HzTotal power5.2kwUltrosonic wave power2kwWfi pressure0.2-0.35MPaWfi consumption100-150L/HPure water pressure0.2-0.35MPaPure water used100-150L/HCompressed air0.15-0.25MpaCompressed air used40m3/HSingle machine noise≤70dBGross weight500kgOverall dimension2780×800×1750mm Main parts brands:Ultraoni-wave generatorGhamachineFrequency converterTaiwan DeltaPLCGermany SimensTouch screenGermany SimensLow-voltage apparatorsGermany SchniderPower amplification moduleJapan Mistubishi      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
