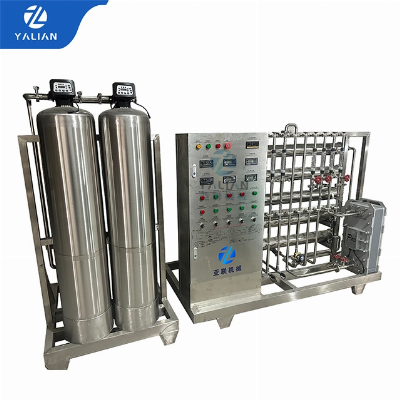

RO Water System for Bore Well Water

Company ProfileDetailed PhotosRO water system for bore well waterProducts show :  RO Flow ChartRO water system for bore well waterFlow Chartraw water - raw water tank - raw water pump - sand filter - carbon filter - softener (optional) - security filter - 1 stage high pressure pump - 1 stage reverse osmosis system - 2 stage high pressure pump - 2 stage reverse osmosis system - pure water tank - UV sterilizer / ozone generator (optional) - water supply pointsSTEP. Sand Filter:  Use quartz sand media with a diameter of 2-4mm to remove some big suspended solids like colloids, rust, mud, impurity etc.  STEP. Carbon Filter:  Active carbon can absorb some organism, dissolved air, odor & color matter etc.STEP. Softener:  Use cation exchange resin to remove Calcium, Magnesium etc. to make soft water.STEP. Security Filter: Use 5 -20 micron sediment cartridge filter / bag filter, to remove the passed suspended solid from pre-treatment, so that to ensure the safety of the entrance of RO system.STEP. Reverse Osmosis: The nanometer RO membrane can intercept the inorganic salt, heavy metal ions, organic matter, colloid, bacteria, viruses and other impurities but H2O of the source water, so it can produce the pure water.No.NameFunctionRemark1Raw water tankStore water, buffering pressure, overcome instability ofsupplying water by pipe, ensure to supply water stably and continuously for whole systemCustomer provide forthemselves, becausebig size will result inexpensive freight.2Raw water pump or called booster pumpProvide needed pressure for every pretreatment filterWe can provide CNPpumps or pumps3Mechanical filter /quartz sandfilter /sand filterWe use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities,suspended substances, colloids etc. 4Activated carbon filterWe use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorineand organics substances. 5Security filter /pp filter / sedimentfilterprevent large particles, bacteria, viruses into ROmembrane, accuracy is 5 micron, 6High pressurepumpProvide needed working pressure for RO system, ensureproduction capacity of pure water.CNP pump, optional7RO(reverseosmosis) systemCan remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmfulsubstances and 99.999% dissolved salts.RO membranes USAFilmtec Dow8UV/ OzonegeneratorKill bacterials in water. UV for direct drinking water.Ozone generator for bottle water Product FeaturesRO water system for bore well waterFunction of each part of water treatment plant 1.feed water pump -- provide the pressure to quartz sand filter/active carbon filter2.Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.3.Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect. 5.Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um4.Softener--exchange "ions" of calcium and magnesium with the most common and easiest method. 6.High pressure pump-- Provide the high pressure to RO membrane 8.UV sterilizer or ozone generator--- kill bacteria7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ionsRelated ProductsCertifications   FAQ/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
