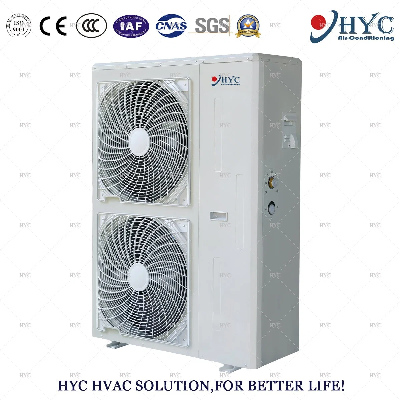

Air to Water Source Heat Pump Water Heater

Sincerely welcome to visit our factory at your convience. Customer could witness their order production real conditions by online videos or photos at any time during production.STRUCTUREThe master module can work independently or together with up to 11 slave modules. HERMETIC COMPRESSORThe units use high efficiency, hermetically sealed, compressors, oil return lubrication and rubber vibration damper. The thermal overload cut-out, phase sequence relay and crankcase heater are integrated as the security protection to enhance reliability and performance. AXIAL FANExternal rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP55, provided with a protective outlet grille. EVAPORATOREvaporator built with high efficiency plate type heat exchanger, factory insulated with flexible close cell material. CONDENSERCondenser built with seamless internal screw thread copper tubes mechanically expanded into blue wave hydrophilic aluminum fins. HYDRAULIC CIRCUITHydraulic circuit built with galvanized pipe, complete with water discharge connection for tube in tube heat exchanger and flange type hydraulic connectors in two directions easy for connections from both sides of the units. ELECTRIC PANELElectric panel consist of: Compressor contactor, fan motor contactor, compressor protection breaker, fan protection breaker, phase sequence relay and microprocessor with function display (display only for master/packaged unit) Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system. OPTIONAL• Flow switch; • Rubber anti-vibration mounting.. • Compressor soft connection • BMS • Stainless steel covering • Heat recovery 20%-25% • Remote condenser  Model 203040 Power supplyV-Ph-Hz380v/3ph/50hz380v/3ph/50hz380v/3ph/50hzCooling*   cooling capacityKW6597.5130 cooling power inputKW20.831.241.6 cooling current inputA38.5055.874.3 Heating**   heating capacityKW68103141 heating power inputKW21.532.2543 heating current inputA38.457.676.8 Compressor   qty/234 input powerkW10.1*210.1*310.1*4 input currentA17.6*217.6*317.6*4 Condensor   condensor coil qty/345 air flowm3/h12700*217800*223800*2 axial fan qty/222 motor power inputKW0.75*21.1*21.5*2 Evaporator   type/shell and tubeshell and tubeshell and tube water flowm3/h11.216.822.4 water pressure dropkPa383838 water pipemmDN50DN50DN50 Noise leveldB(A)607478 Dimension(L*W*H)mm2020*1000*19202020*1000*19202020*1000*1920 Net weightkg605830925Factory ViewProduction MachineryTest LabAir cooled water chiller & heat pump Production LineSincerely invite you to visit our factory for inspection and guidance.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
