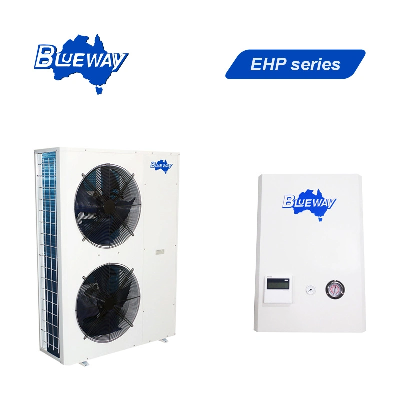

8HP Evi Heat Pump for -35degrees Constant Heating R410A

PRODUCTION DESCRIPTION  R410a EVI Low Ambient Heat Pump, featured with EVI (Enhanced Vapor Injection) and cost-effectiveness, can be used in super cold area with climate temperature as low as -35ºC, like northern Europe. With stable and outstanding operations, warm comfortable, automatic defrost and low noise advantage of house heating, room cooling, and domestic hot water applications, EHP series can satisfy the daily need of family. Additionally, it can work with solar, boiler or electric heater according to the practical condition of the heating system.KEY FEATURES  Comparison (EVI System & Conventional System)1) Extended working range down to -35°C ambient (low ambient type)2) 5 modes: heating only, heating+DHW, cooling only, cooling+DHW, DHW only3) Low running costs and high efficiency4) Long-life and corrosion resistant composite cabinet stands up to severe climates5) Famous compressor ensures outstanding performance and durability6) Intelligent LCD display with self-diagnostic control function7) With control output for three-way valve8) Easy operation and simple installation9) WIFI control function is optional   KEY COMPONENTSIntelligent Control  The units are supplied with micro processor based digital controller with LCD display. The controller is programmed to provide a maximum protection to the heat pump system and accurate temperature control. The control panel is completely factory wired with all accessories and terminals included.SWEP Plate Heat ExchangerHigh corrosion resistanceHigh thermal efficiencyHigh working temperature  High Efficiency Compressor  High efficienty and energy savingQuiet operation due to less moving partsAdopt famous brand rotary or scroll compressorHigh Efficiency Class A Pump  Energy saving pump with constant volume or pressure adjustment function. German Wilo or Chinese Shinoo water pump is optional.  APPLICATION DIAGRAMSplit Type:Monoblock Type:  TECHNICAL SPECIFICATIONSOptions: EVI Low Ambient Heat Pump (On-Off, Split & Monoblock Type)EVI On-Off Low Ambient Heat Pump (Split)ModelEHP-09SEHP-13SEHP-17SEHP-17SEHP-22SEHP-28SHP3566810Power supplyIndoor unitV/Ph/Hz220-240/50/1, 380-415/50/3Outdoor unitV/Ph/Hz220-240/50/1220-240/50/1, 380-415/50/3+7°C/35°CFloor heating Heating capacitykW/h9.514.0 17.0 17.0 22 28.5Power inputkW2.63.44.14.0 5.17+2°C/35°C Floor heatingHeating capacitykW/h8.512.3151519.526Power inputkW2.53.23.93.9 5.0 6.9-7°C/35°CFloor heatingHeating capacitykW/h6.810.612.512.516.522Power inputkW2.33.64.34.25.77.7+7°C/45°CRadiatorsHeating capacitykW/h913161620.525.5Power inputkW2.93.94.94.668 -12°C/41°CFloor heatingHeating capacitykW/h5.8910.510.513 17Power inputkW2.53.84.64.55.67.6+35°C/7°CFan coilCooling capacitykW/h61011.811.82025Power inputkW2.33.64.54.47.49.6Heating operation rangeAmbient°C-25~25Water side°C18~55Cooling operation rangeAmbient°C10~43Water side°C7~22Domestic hot water operation rangeAmbient°C-25~25Water side°C25~55Rated water flow ratem³/h1.6 2.4 2.9 2.9 3.8 4.9 Rated pressure dropkPa304045454540Max. working pressureRefrigerantBar444444444444WaterBar777777Controller-Micro processor based digital wire controller with LCD displayExternal cabinet-Galvanized steel with powder coatingCompressorType-RotaryScrollQty.Nos.111111Refrigerant-R410aWater heat exchanger-SUS 316 Brazed plate heat exchangerWater pump-Wilo/ShinhooExpansion tankL58881010Electric heaterkW3/66Water connectionInlet&Outletinch1"1"1"1"1"1-1/4"Noise levelIndoor UnitdB(A)424242424242Outdoor UnitdB(A)525355555556Net dimension (W*D*H)Indoor Unitmm522*296*863.5522*296*863.5522*296*863.5522*296*863.5522*296*863.5602*308*880Outdoor Unitmm950*445*800976*410*1273940*448*1365940*448*13651150*480*15651405*590*1626Net weightIndoor Unitkg505050505070Outdoor Unitkg55809090110165Notes:1.The values of heating (cooling) capacity/power input/COP (EER) are based on measurement of EN14511 standard. Usage environment, such as operation of the heating equipment, room temp. & controller adjustments, may cause disparities between practically determined and these values;                                                            2.Sound pressure level measured at distance of 1m from the devices;                                                                                                                                                                                 3.For wall-mounted type, the compressor is located in the outdoor unit.Blueway reserves the rights to modify the above specifications without notice for product improvement. Please contact us for updated information.  EVI On-Off Low Ambient Heat Pump (Monoblock)ModelEHP-09MEHP-13MEHP-17MEHP-17MEHP-22MEHP-28MHP3566810Power supplyV/Ph/Hz220-240/1/50380-415/3/50+7°C/35°CFloor heating Heating capacitykW/h9.514.0 17.0 17.0 22 28.5Power inputkW2.63.44.14.0 5.17+2°C/35°C Floor heatingHeating capacitykW/h8.512.3151519.526Power inputkW2.53.23.93.9 5.0 6.9-7°C/35°CFloor heatingHeating capacitykW/h6.810.612.512.516.522Power inputkW2.33.64.34.25.77.7+7°
