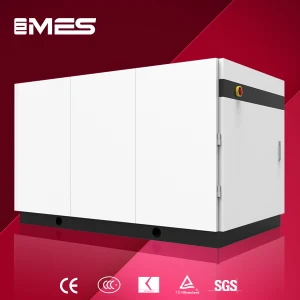

Ground Source Heat Pump Gd190-N20

Basic Info.Model NO.GD190-N20Energy Efficiency Grade One Heat Temperature50-70°CWork EnvironmentCommon Heat PumpHeat Source Water-source Heating Type Circulating Heat ApplicationVilla Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty SalonsCertificationCE, ISO9001, CCC, SASOPower Supply380V/50Hz, 3 PhasesTrademarkMESTransport PackageWooden CaseSpecification2000x1000x1600mmOriginJiaxing, ChinaHS Code8418612090Product Description MES Commercial water source heat pumps for 50ºC hot water This is water source heat pumps for commercial hot water rated temperature 50ºC, it is used widely in hotel, school, factory and so on.It can supply higher capacity and COP compare with air source heat pumps and with our professional adjustment when testing, you will get one of the best water source heat pump in China. Product Info.CompressorCopeland scroll or Panasonic scrollCapacity8KW,12KW,20KW,28KW,40KW,55KW,80KW,95KW, 120KW, 145KW,190KWRefrigerantR410ACondenser"ND" Shell & Coil heat exchangerEvaporatorShell & tube, tube in tube, plate type heat exchangerAC contactor & RelaySchneiderElectronic expansion valveJapan Saginomiya or World No.1 SanhuaControllerLCDPackageWooden case or CartonFastenersStainless steel 304  Additional Info.Delivery time25 days after order confirmedWarranty time24 months after shipmentPayment termT/T or L/C at sightProduction capacity400 units per monthBrandMES or OEMComponents we use:BEST DESIGN FOR BEST OPERATION!PRODUCT FEATURES:a. Copeland and R410a refrigerant for best operation.b. Shell & tube heat exchanger, tube in tube heat exchanger, plate type heat exchanger for option;c. Emergency switch for power on/off.d. World famous brands of components, such as Saginomiya electronic expansion valves, SHF 4-way valves and etc.,e. With compelete testing in laboratory for good quality and highest COP.f. All copper material for water pipes.g. Strong wooden case packing for safe sea transporation.h. Advanced control system for reaching all of your requirements, such as Rs485, PC connection, Modbus port.i. Unique cabinet designing, for your better marketing.Parameters table:ModelGD8s-CN5GD12s-CN5GD20s-CN5GD12-CN5GD20-CN5GD28-CN5GD40-CN10GD55-CN10GD80-CN20GD95-CN20GD120-CN20GD145-CN20GD190-CN20Rated heating capacityKW8122012202840558095120145190Rated powerKW1.642.414.022.413.915.587.9811.0716.2619.1124.4429.4739.09Rated currentA7.1110.4817.464.567.3810.5415.0920.9230.7336.1346.1955.7073.89Maximum powerKW2.213.255.423.145.087.2510.3814.3921.1424.8531.7738.3150.82Maximum currentA10.5215.4925.826.129.9014.1420.2428.0541.2248.4661.9674.7199.10Performance coefficientCOP4.894.984.984.975.125.025.014.974.924.974.914.924.86Rated hot water yieldsL/H172258430258430602860118217202043258031184085Setting water temperatureºC50ºC(default)  28-60ºC(adjustable)Power supply1N 220V/50Hz                                                      (Special power supply for option)3N 380V/50Hz(Special power supply for option)CompressorTypeHermetic Rotor typeHermetic scroll typeStart modeDirect(Soft start for option)Application side heat exchangerTypeShell & tube heat exchanger(Tube in tube heat exchanger or Plate type heat exchanger for option)Shell & tube heat exchangerWater flowM3/h1.42.13.42.13.44.86.99.413.816.320.624.932.7Water pressure dropKPa≤50≤50≤50≤50≤50≤50≤50≤60≤60≤70≤70≤70≤70Pipe connectionDNDN20DN20DN25DN20DN25DN25DN32DN50DN50DN50DN65DN65DN65Pipe typeInner threadFlangeHeat source side heat exchangerTypeShell & tube heat exchangerWater flowM3/h1.11.62.71.62.73.85.47.310.712.716.119.425.5Water pressure dropKPa≤50≤50≤50≤50≤50≤50≤50≤60≤60≤70≤70≤70≤70Pipe sizeDNDN20DN20DN25DN20DN25DN25DN32DN50DN50DN50DN65DN65DN65Connection typeInner threadFlangeProtections1. High and low pressure protection, 2. Anti-freeze protection, 3. High temperature protection, 4. Overload protection, 5. Reverse of phase protection, Lack of phase protection, etc.RefrigerantTypeR410AQuantity(KG)1.61.92.81.92.832.8x26.5x28x28.7x28x38.7x38.7x4NoiseDB(A)≤52≤53≤55≤55≤55≤58≤58≤62≤65≤65≤70≤75≤75Dimensionmm790x415x590790x710x9502000x1000x1600Wooden case package dimensions(L*W*H)mm836x461x752836x756x11122056x1056x1768Net weightKG556895659513519532079588598511801210Gross weightKG657810575105145215340830920102012151245Note: 1. Hot water heating standard condition: use side initial water temperature 15ºC, end water temperature 55ºC;  heat source side water input temperature 15ºC.          2. The above parameters are based on refrigerant R410A, for parameters based on other refrigerant please contact us.          3. The above parameters may have some differences from the final product because of products updating, please refer to final product lable when buy, or refer to us for any information. Our company keeps the right to interpret.Welcome to MES!
