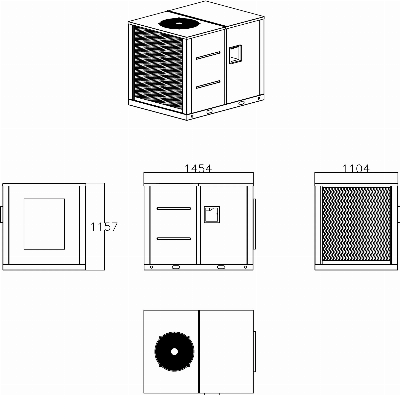

Rooftop HVAC Packaged Units for UAE Qatar Middle East R410A

PRODUCTION DESCRIPTIONRooftop Air Conditioning offer a flexible way to provide treated air for one to eight-story buildings. Many options and configurations are available to satisfy a wide number of applications. Fresh outside air is mixed with return air from the occupied space and then filtered, conditioned, and supplied back into the building. Conditioning involves cooling, dehumidifying, or heating the air for optimal space comfort. Rooftop system units can serve a single zone, or an entire building filled with many zones. Some units can be specifically designed for make-up air, where only outside air is treated and sent to the space.     KEY FEATURESEvaporator / Condenser CoilThe evaporator or condenser coil used is of fin and tube type. The fins are hydrophilic treated aluminum fins to resist corrosion, and the copper tubes are inner-grooved type, which increases the heat transfer in the refrigerant side.Intelligent ControlThe units are supplied with micro processor based digital controller with LCD display. The controller is programmed to provide a maximum protection to the heat pump system and accurate temperature control. The control panel is completely factory wired with all accessories and terminals included.Compressor  ♦ Famous brand rotary compressor for Domestic Heat Pumps♦ Bitzer, Copeland, Danfoss or Panasonic compressor for Commercial Heat Pumps1) Famous brand high efficiency compressor2) High efficiency eco-friendly refrigerant, without ozone depletion3) Intelligent control: micro processor based digital controller with LCD display4) Smart Equipment controls aid in reliability and ease of use5) With heating and cooling function, and WIFI function is optional6) Saving over 2/3 energy than the conventional equipments7) Energy-saving, high performance, low noise, easy to operate      TECHNICAL SPECIFICATIONSOptions: Commercial Packaged Rooftop Units (On-off &Inverter Type, R410a)DC Inverter Rooftop Package (R410a)Ton57.51015202530ModelBRP-C5TC3BMBRP-C7.5TC3BMBRP-C10TC3BMBRP-C15TC3BMBRP-C20TC3BMBRP-C25TC3BMBRP-C30TC3BMCoolingCooling capacity*1Btu/h6000089000116000180000240000300000330000kw17.5263452698596Power input*1kw5.9911.418.323.63034.2EER*1Btu/w10.29.810.29.710.19.79.5Cooling capacity*2Btu/h5000075000100000160000210000252000297000kw14.6222947627487Power input*2kw6.29.512.120.427.533.339.5EER*2Btu/w8.17.98.27.87.77.67.5HeatingHeating CapacityBtu/h6300095500120000191000256000330000355000kw18.52835547590104Power inputkw5.58.210.316.823.428.534.5COPBtu/w11.511.611.6111110.810.5Power supply -380~415V,3N~,50Hz380~415V,3N~,50Hz380~415V,3N~,50Hz380~415V,3N~,50Hz380~415V,3N~,50Hz380~415V,3N~,50Hz380~415V,3N~,50HzMax. power input kw8121626323946Max. operating current A16243152637891NoisedB(A)65697274747575Indoor FanAir flowCFM200028003500570083001000012000m3/h3300470059009500140001680020000ESPPa60(0~180)75(0~180)90(0~200)120(0~300)140(0~350)150(0~350)200(0~400)Type-DC  CentrifugalDC  CentrifugalDC  CentrifugalDC  CentrifugalDC  CentrifugalDC  CentrifugalDC  CentrifugalQuantitypcs.1112222Drive type-DirectDirectDirectDirectDirectDirectDirectFilterMaterial -PPPPPPPPPPPPPPQuantity 1112222Size (W×D×H)mm1000×430×101000×640×101000×720×10900×740×10900×630×101000×640×101000×860×10Indoor CoilNumber of rows-3444444Finspcs./in16161616161616Tube sizein5/165/165/165/165/165/165/16mm7.947.947.947.947.947.947.94CompressorType-RotaryRotaryscrollscrollscrollscrollscrollQuantitypcs.1111222Brand-GMCC or PanasonicGMCC or PanasonicGMCC or HitachiCMCC or HitachiCMCC or HitachiCMCC or HitachiCMCC or HitachiCapacityBtu57000740007900010800079000×2108000×2108000×2kw16.821.52331.623×231.6×231.6×2Oil chargeml17001900110015601100×21560×21560×2RefrigerantTyPe-R410aR410aR410aR410aR410aR410aR410aRefrigerant volumekg4.268128×211×212×2Throttling method -EEVEEVEEVEEVEEVEEVEEVOutdoor fanTyPe-PropellerPropellerPropellerPropellerPropellerPropellerPropellerQualitypcs.1112222Drive type-DirectDirectDirectDirectDirectDirectDirectOutdoor CoilNumber of rows-3333333Finspcs./in16161616161616Tube sizein5/165/165/165/165/165/169/32mm7.947.947.947.947.947.947.94DimensionOutline(W×D×H)mm1350×1100×8001450×1100×11501450×1100×12002260×1120×12452240×1880×11652240×2320×12952240×2320×1560Package(W×D×H)mm1395×1150×8451495×1150×11952495×1150×12452285×1145×12902265×1905×12152265×2345×13202265×2345×1610WeightNetkg2103053355707808901080Grosskg2303303575998229201125Loading20'/40'/40'HQpcs.16/32/488/16/328/16/324/10/203/6/122/5/92/5/5Note: 1) *1, T1 cooling: Indoor, 27ºC (81ºF) DB/19ºC (67ºF) WB; Outdoor, 35ºC (95ºF) DB/24ºC (76ºF) WB;2) *2, T3 cooling: Indoor, 29ºC (84ºF) DB/19ºC (67ºF) WB; Outdoor, 46ºC (115ºF) DB/-ºC (-ºF) WB;3) Heating: Indoor, 20ºC (68ºF) DB/15ºC (59ºF) WB; Outdoor, 7ºC (45ºF) DB/6ºC (43ºF) WB;Blueway reserves the rights to modify the above specifications without notice for product improvement. Please contact us for updated information.  MANUFACTURING & SHIPMENT   ADVANTAGES & MARKET OVERVIEW  1.Blueway has around 30 years of rich HVAC m
