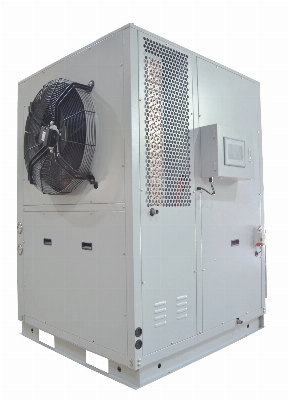

OPERATING PRINCIPLEThe hot air dehumidified and heated by the heat pump host is sent to the oven by the circulating fan to transfer heat to the wet material, the moisture on the surface of the wet material vaporizes after heated. With the transfer of heat, the moisture inside the wet material migrates to the surface and is taken away by the air flow after evaporation. The humid air enters heat pump to achieve dehumidification and reheating. As the drying process progresses, heat is continuously transferred to the wet material through the hot air ( heat transfer), while the air flow continuously takes away the moisture of the wet material ( mass transfer ) to achieve the purpose of drying.PERFORMANCE FEATURE Air energy heat pump enclosed drying system, only drains water but not heat, no energy loss, 100% heat recovery;Use electric energy, no pollution, energy saving and environmental protection;Airtight dehumidification and drying, less damage to the material structure, can solve the problems of blasting and saccharification during baking;No sulfur after drying, the material has good quality and reducibility;Closed hot air circulation, strong wind convection, no ventilation dead angle in the drying room, good consistency;Accurate temperature and humidity can only be controlled in sections, programmable + LCD touch screen intelligent control, fully automatic operation;No need to flip the material during the drying process, saving labor.Technical Data Sheet ModelSDR-20DCHAABASDR-20XCHAABASDR-40DCHAABASDR-40XCHAABASDR-80DCHABBADrying Temperature15ºC~75ºCDehumidification Capacity kg/h (return air temperature 45ºC, humidity:65%RH)2020404080Rated power input Kw5.85.812.611.823.2Auxiliary electric heating power Kw7.27.213.513.518Air volume m3/h61006100111001110027900Air wayat the topat the bottomat the topat the bottomat the topPower supply380V / 3N / 50HzRefrigerantR134aFunctionsHeat up, dihumidification, endothermic, refrigeration, exhaust humidityBoundary dimension(length*width*height)mm910*1180*1575910*1180*15751210*1475*17651210*1475*17651670*1800*1815Unit weight3052955405201150/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
