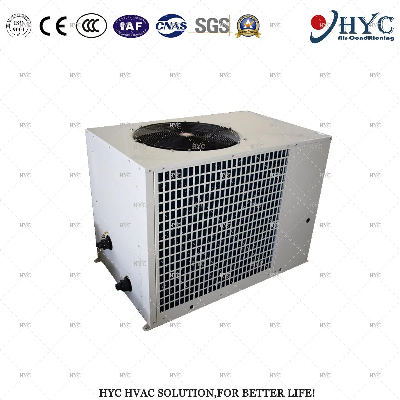

Hot Air to Water Small Pool Heat Pump

Sincerely welcome to visit our factory at your convience. Customer could witness their order production real conditions by online videos or photos at any time during production.STRUCTUREPanels and base frame are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents. HERMETIC COMPRESSORThe units use high efficiency, hermetically sealed, compressors, oil return lubrication and rubber vibration damper. The thermal overload cut-out, phase sequence relay and crankcase heater are integrated as the security protection to enhance reliability and performance. AXIAL FANExternal rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille. EVAPORATOREvaporator built with high efficiency plate type heat exchanger, factory insulated with flexible close cell material. CONDENSERCondenser built with seamless internal screw thread copper tubes mechanically expanded into blue wave hydrophilic aluminum fins. HYDRAULIC CIRCUITHydraulic circuit built with galvanized pipe, complete with water discharge connection for tube in tube heat exchanger and flange type hydraulic connectors in two directions easy for connections from both sides of the units. ELECTRIC PANELElectric panel consist of: Compressor contactor, fan motor contactor, compressor protection breaker, fan protection breaker, phase sequence relay and microprocessor with function display (display only for master/packaged unit) Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system. OPTIONAL• Pressure differential/Flow switch; • Metallic filter for hydraulic circuit; • Water pump; • Rubber anti-vibration mounting.. • BMS • Stainless steel covering Model 8101214202530354050Power supply /220-240V/1Ph/50Hz380-415V/3Ph/50HzCooling  Cooling capacitykW8101214202528354050Cooling input powerkW3.053.854.515.137.098.6110.0511.2713.6617.18Heating  Heating capacitykW1012.514.7162227.230384455Heating input powerkW3.053.854.515.137.098.6110.0511.2713.6617.18Compressor  Qty/1111222222Input powerkW2.813.374.034.652x3.272x4.032x4.652x5.262x6.282x8.04Running currentA13.1216.437.028.322x6.262x7.022x8.322x10.032x12.012x14.79Axial fan qty/1222111222Expansion type/thermal expansion type Evaporator  Type/Plate type or tank type heat exchangerWater flowm3/h1.41.72.12.43.44.34.86.26.98.6Water pressure dropkPa33333336363842505252Water pipe in/outmmDN25DN25DN25DN25DN32DN32DN32DN32DN32DN40Dimension   Lengthmm1250125012501250160016001600200020002000Widthmm452452452452940940940900900900Heightmm1180118011801180108010801080108010801080Net weightkg150155150180282310339310470520NoisedB(A)58586064646668707070Factory ViewProduction MachineryTest LabAir cooled water chiller&heat pump Production Line  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
