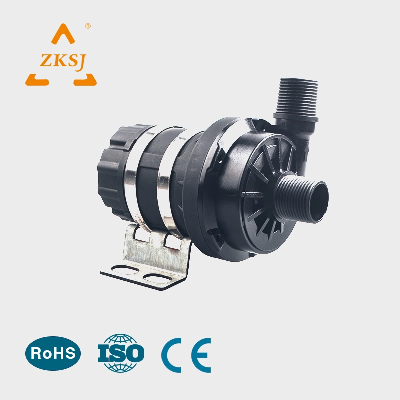

High Efficiency Geothermal Heat Pump

SpecificationNO.ItemSpecs1Dimension and weight150.3mmx100mmx123mm; 893g2External diameter of outlet25mm3External diameter of inlet25mm4Driving mechanismBrush-less, magnetic isolated design5Material of pump shellABS,PES/SPS/PPS/PA66+30%GF (Optional)6Condition of useCan continuously work, submersible or land use (not self-priming)7Suitable mediumWater, oil, or normal acid/ alkaline liquids8Max working temperature120ºC  3-phase pump with controller inside for submersible installation3-phase pump with controller inside for nonsubmersible installation9Power consumption80W/100W10Rated voltage12Vdc or 24Vdc11Working voltage range5Vdc ~ 14Vdc or 5Vdc ~ 26Vdc12Max load current6.6A/4.2A13Max horizontal flow rate3100L/H  3450L/H14Max static lift10M/12M                                 15Noise class30,000hrsIP68(suitable for submersible installation)18Power supplySuitable solar panel, batteries, adapter or other power source19Protection functionDry-run protection, lock protection(customized function)20Power regulation functionSpeed adjustable by PWM signal, 0~5V analog signal or potentiometer (functions are optional for customization)22Featuresmall size with high efficiency,maintenance-freeUse ceramics shaft and carbon fiber sleeveCompletely water proof (IP68)Brush-less dc control without pollution, long life spanOEM and ODM service acceptOffer Pump related control system designElectrical parameters (only for reference,parameters can be customized for specific requirements) Model No.VoltageMax load currentMax static liftMax flow ratePower consumption V(dc)AML/HwDC60G-12100S126.610310080DC60G-12100ADC60G-24120S244.2123450100DC60G-24120A     NOTE Information including continuous working time, working temperature and medium is required to be pre-confirmed with professionals; pump cannot work with high temperature or corrosive fluids. When pump is connected into circulation system, load current will be reduced to 70~85% of Max working current (opening outlet current). The head means the Max vertical lifting height of water,the flow is 0L/MIN@max head. The max flow rate means flow rate with no lifting height(according to the curve bellow)Flow rate-Head Curve Dimensions of pumpproduction testExploded diagram of the product   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
