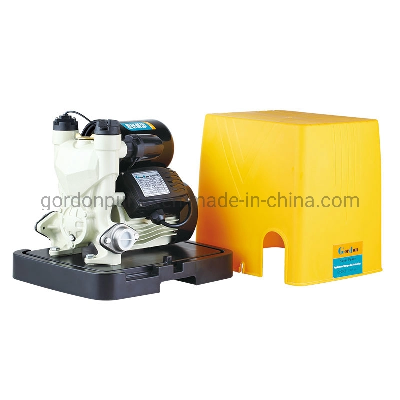

Domestic Copper Wire Electrical Auto Water Pump with Pressure Tank

Domestic Electric Automatic Pump with Pressure Tank for Hot WaterPump>> Pump Body: cast iron & support under special anti-rust treatment>> Impeller: stainless steel impeller, brass impeller, ppo impeller>> Mechnical Seal: carbon / ceramic / Stainless SteelMotor>> Bulit-in thermal protector for single phase motor>> Motor with copper winding>> Motor Housing: Steel-plate, Aluminum alloy>> C&U bearing>> Stainless steel shaft or 45# carbon steelWorking Range>> Liquid: clean liquids without  suspended solids, non-aggressive>> Liquid temperature: -10ºC and +100ºC>> Ambient temperature up to +40ºC>> Max. working pressure 10 bar>> Continous service S1>> Insulation: B>> Protection: IP44Advantages>> Electronic pressure switch controlled by PC clip to avoid take off pressure switch frequently.>> Every 72h it will start for 10s in order to avoid pump locked if long time no using pump.>> Water protection system to avoid the pump in the anhydrous state for a long time. >> Delay 3s start to avoid spark-over socket, protect the personal safety.>> The flow priority system, electric pump use acme, turely achieve the full pressure. Application                                                                      Technical DataModelHPWCurrent (A)Capacitor (uf)H.Max (M)Q.Max (L/min)Pipe SizePressure Set (bar)Tank (L)GDHm-125A0.151251.5830321"X1"1.52GDHm-250A0.352503.51032351"X1"1.82GDHm-370A0.53704.51036361"X1"2.22GDHm-550A0.755502.91545551"X1"2.62GDHm-750A17503.52055581"X1"2.82GDHm-1100A1.511004.52562661"X1"3.22   GDHm Automatic Self-priming Pump                Item DescriptionItem DescriptionItem DescriptionItem Description11Press Sensor21Bearing31Screw41O-ring12Screw22Shaft Key32Cable Plug42Pressure Tank13Inlet Rubber23Rator33Cable Net43Pressure Sensor14Stainless steel Inlet24Bearing34Screw44Cover15O-ring25Stator35PC Clip45Plastic Base16Screw26Motor House 36Volatede Regulator46Screw17O-ring27Terminal Box37O-ring  18Screw28Screw38Fan  19Front Plate29Capacitor39Screw  20Screw30Terminal Box40Fan Cover  Production Work-flow Chart of Pump                                                    About us     FAQQ: Are you trading company or manufacturer ?A: We are factory.Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.Q: What is your terms of payment ?A: Payment=1000USD, 30% T/T in advance ,balance before shippment./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
