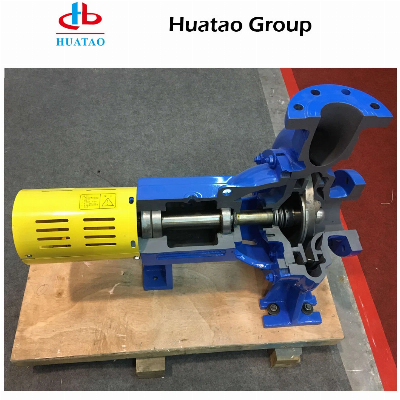

Centrifugal Slurry Pump for Use in Pulp Making

Centrifugal Slurry Pumps for Use in Pulp Making  Product DescriptionHUATAO OEM Kinds Of Centrifugal Slurry Pumps for Use in Pulp Making to deliver the pulp and water.And the Pulp Pumps as the key equipment during the pulp stock preparation.Watering Ring Vacuum PumpWatering Ring Vacuum Pump The water ring vacuum pump (referred to as a water ring pump) is a rough vacuum pump, the ultimate vacuum it can obtain is 2000~4000Pa, and the vacuum degree of the unit formed with the vacuum pump can reach 1~600Pa. The water ring pump can also be used as a compressor, which is called a water ring compressor, which is a low-pressure compressor with a pressure range of 1~2×10^5 Pa gauge pressure.The water ring vacuum pump is equipped with an eccentric rotor with fixed blades, which throws water (liquid) to the stator wall, and the water (liquid) forms a liquid ring concentric with the stator, and the liquid ring and the rotor blades together form a variable volume. The positive displacement vacuum pump. In many processes of industrial production, such as vacuum filtration, vacuum water diversion, vacuum feeding, vacuum evaporation, vacuum concentration, vacuum resuspension, and vacuum degassing, water ring pumps are widely used. Mainly used in a coal mine (gas pumping), chemical, pharmaceutical, mining, paper, food, beer, building materials, plastics, metallurgy, electrical appliances, and other industries.Water ring vacuum pump advantage:1. The structure is simple, the manufacturing precision is not high, and it is easy to process.2. The structure is compact, the speed of the pump is high, and it can generally be directly connected with the motor, without the need for a deceleration device. Therefore, with a small structure size, a large exhaust volume can be obtained, and the floor space is also small.3. The compressed gas is basically isothermal, that is, the temperature change of the compressed gas is small.4. Since there is no metal friction surface in the pump cavity, there is no need to lubricate the pump, and the wear is very small. The sealing between the rotating part and the fixed part can be done directly by the water seal.5. The suction is uniform, the work is stable and reliable, the operation is simple, and the maintenance is convenient.Centrifugal PumpSGZ SK Centrifugal Pump SGZ SK Centrifugal Pump high-efficiency non-clogging non-leakage pulp pump is a new generation of pulp pump products.It has obvious advantages such as high efficiency, good anti-clogging performance, no leakage during operation, and convenient installation and maintenance. It is widely used in the conveying of pulp media in paper and pulp enterprises.Centrifugal Pump Structural features:1. The pump has a rear door structure, and it is not necessary to disassemble the pipeline during maintenance.2. The pressure design of the inlet and outlet flanges of the pump is 1.6MPa.3. The impeller adopts a three-blade (or six-blade), open impeller, high efficiency and no need for axial thrust compensation, easy maintenance and low chance of blockage. The impeller adopts lost wax precision casting and is checked for dynamic balance.4. The pump shaft is supported by a combination of oil-lubricated, heavy-duty, abrasion-resistant, imported cylindrical roller bearings and radial thrust ball bearings (angular contact ball bearings). Cylindrical roller bearings are mounted on the pump end and radial thrust ball bearings are mounted face to face on the rotating end5. Shaft seals mainly include a pumping ring plus single-end mechanical seal, packing seal, single-end mechanical seal, tandem mechanical seal, double-end mechanical seal, combination seal of pumping ring and single-end mechanical seal, and dynamic seal. , the user can choose according to the requirements and actual working conditions6. There are four kinds of materials: cast iron, cast steel, ordinary stainless steel, and duplex stainless steel.  Double Flow Centrifugal PumpS-type and SH-type centrifugal pumps are single-stage double-suction, horizontal split centrifugal pumps, which are used to transport clean water and liquids with similar physical and chemical properties to water. The maximum temperature of the liquid does not exceed 80 ºC, which is suitable for paper mills, mines, cities, power station water supply, and drainage, farmland irrigation and drainage, and various water conservancy projects.Model S centrifugal pumps look towards the pump from the coupling and the pump rotates clockwise. The water inlet of the pump is on the right and the water outlet is on the left. If you need to change the position of the import and export, you need to explain it before production.SH type centrifugal pump looks at the pump from the coupling, and the water pump rotates counterclockwise. The water inlet of the pump is on the left and the water outlet is on the right. If you need to change the position of the import and export, you need to explain it before production.The bearings of the centrifu
