Midea Air Conditioning Chilled Water Fresh Ahu Air Handling Unit

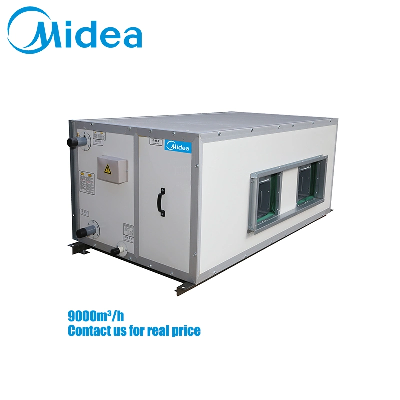

 Midea CAC IntroductionMidea Product PortfolioProducts ShowProduct DetailsHorizontal Type Air Handling Unit adopts unitary structure design, more outstanding cold-bridge free performance, lower air leakage and more elegant appearance. Different external static pressure (ESP) can be customized to meet different kinds of applications.  Air volume5000-40000m³/hRated cooling capacity28.3-300.0kwRated heating capacity47.5-447.0kwExternal static pressure96-405PaFan motor input 1.1-11kwWater pressure drop20.2-68kpaDrain pipe DN25Sound level59.2-78dB(A)Power supply 380-415V/3Ph/50HzProduct Advantages1.OrientationUnit handling orientation Is determined by location of pipe connection while facing unit in thedirection of air flow. The unit below is left-handed connection unit, otherwise is right-handed connection unit.  2.High strength, high reliabilityPanels are double skin with injection of high density polyurethane. The outer skin isanti-corrosion color-coated steel sheet. the inner skin is galvanized steel sheet. The unitcabinet consists of panels attaching to each other by combining with male and femalealuminum alloy cards and sealing strip, tighten with concealed bolts.3.Outstanding cold-bridge free structureThe density of polyurethane injection is 50kg /m' (thermal conductivity factor Ks0.0224W/m?K).Unit cabinet is constructed by panels with male and female aluminum alloy cards and sealingstrip. The service door (or service panel) is plastic-steel frame with polyurethane injectionpanel and rubber sealing strip.4.Low air leakage rateDouble skin. panel, unitary structure design, less connecting joints, multi sealing strips in thecontact surfaces, around sealing service door/panel, all ensure almost total air can be suppliedto the air-conditioned room. The air leakage fate is less than 0.29%, Units will not sweat whenexterior room temperature Is 27*C, relative humidity is 90%.Simple structural componentsLess at-site work5.High performance heat exchangerCopper pipe and aluminum fin type heat exchanger, optimal choice of fin spacing and numberof rows.Fins are coated with anticorrosive layers, assure longer coil life and lower maintenance cost.Optimal water circuits design, increased heat exchange efficiency and decreased waterresistance, improving unit performance efficiency.Projects ShowAbout Beijing Midea OverseasOur Company Advantages/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
