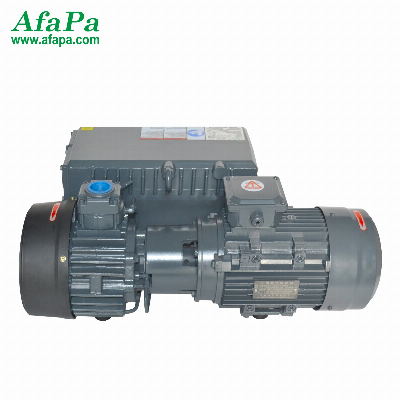

2.2kw 63m3/H Oil Lubricated Rotary Vane Vacuum Air Pump

Product DescriptionSV Oil Lubrication Single Stage Rotary Vane Vacuum Pump: SV oil lubricated single rotary vane vacuum pump is new style Multi-function vacuum equipment, it developed from adsorbing numerous international famous company advanced technology, take the advantages of long service design, high vacuum degree, environmental protection, complete specification etc. We own the exclusive patent.Working Principle:Eccentric mounting rotor rotating in the pump inside, which form centrifugal force driving vanes close to pump wall rotating, vanes divide pump body and rotor into multiple working chamber, when working chamber connect to inlet passageway, start to suction gas, vanese keep rotating and compressed gas into oil tank, oil tank inner constant differential pressure make oil enter comprssed chamber, lubricated oil and extracted gas enter into oil tank, with gravity action, exhaust filter separate lubricated oil, lubricated oil back to the bottoom of oil tank and enter into working chamber(oil recyle), oilless gas exhaust to atmosphere.  Product ParametersModelPumping Speed(m3/h)Max Vacuum(Pa)Motor Power(Kw/Hp)Rotating Speed(RPM)Water Vapor Capacity(Kg/h)Inlet HoleOil Feeding(L)Noise(dB)Weight(Kg)Dimension(LxWxH,MM)SVF01010800.37/0.5514000.02G1/20.56018410x240x210SVF02020800.75/1.028000.04G1/20.56420410x240x210SVF04040501.1/1.514000.75G1-1/41.36748630x290x260SVF06363501.5/2.014001.5G1-1/41.36850660x300x270SVF100100503.0/4.014401.6G1-1/41.36870730x410x290SVF160160504.0/6.014402.7G2274160900x540x450SVF200200504.0/6.014403.4G2574160900x540x450SVF250250505.5/7.514404.4G25761901000x540x450SVF300300507.5/1014405.4G25762201060x540x450SVF6306305015.2095010G315786401500x900x760Remark:1m3/h=0.2778L/S, 1m3/h=0.5883CFM.1Pa=0.01mbar, 1Pa=0.001Kpa, 1Pa=0.0075Torr, 1Pa=0.000145PSI, 1Pa=0.00001Bar.  Our Advantages1. Long life design, the greatest value to customers.2. Full rubber seals, improved sealing, easy disassembly.3. Symmetrical mounting base for easy installation and transportation.4. Vane with some self-lubricating function, can adapt to harsh process.5. High vacuum up to 10Pa, High pumping speed also at low pressures.6. Environmentally friendly, integrated exhaust filter, clean exhaust air. Outlet hole equip with check valve, can avoid oil back to vacuum system. Multiple vanes design, high efficiency and energy saving. Cooled air. Direct-coupled connection, low noise, low vibration, can work in horizontal plane. When ultimate vacuum reach atmospheric pressure range, can continuous running.  Project Case  Exhibition  FAQQ1: If I want to inquiry, what can I need to offer?A1: Please tell us your Working Vacuum Degree(Pa,mbar or torr), Flowrate(L/S or M3/H) and Usage.Q2: Do you have MOQ?A2: 1Pcs is ok,if you have more quantity, the price will be cut down.Q3: How long to delivery?A3: We need about 4-5 weeks to produce,then extra need about 5-7 days to arrange domestic delivery and port clearence.Q4: What is your payment term?A4: 50% for prepayment, then the balance should paid before delivery, by TT.Q5: How long for the warranty?A5: 1 year for whole machine, the effective date of warranty should be counted from one month the goods arrived in client's site. If the pump go wrong, the client can choose back the pump to factory repair,or we offer remote technical support./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
