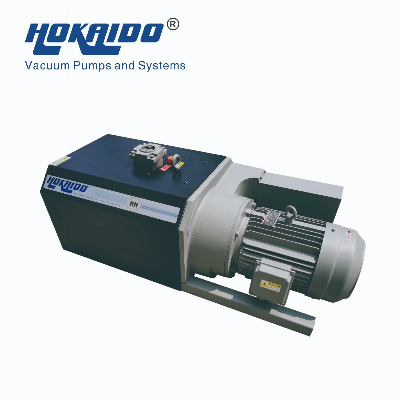

Oil Free Dry Claw Vacuum Pump Air Cooling / Water Cooling

Claw Vacuum Pump (RC100)  Product DescriptionWith claw vacuum pumps, two claw-shaped rotors turn in opposite direction inside the housing. Due to the shape of these claw rotors, the air or gas is sucked in, compressed and discharged. The claw rotors do not come into contact either with each other nor with the cylinder in which they are rotating. Tight clearances between the claw rotors and the housing optimise the internal seal and guarantee a consistently high pumping speed. A synchronisation gearbox ensures exact synchronisation of the claw rotors.Claw vacuum pumps are driven by a directly flange-mounted asynchronous motor, with an efficiency class IE2.  Claw vacuum pumps are ideally suited to use with frequency-controlled drives. Claw vacuum pumps are available in a wide range of sizes.There are also variants for special applications such as dust and gas explosion protection, high steam contents, gas tightness and increased oxygen contents.Product Parameters  Product Model50/60HzRC100Pumping Speed50Hz100m³/H60Hz120m³/HUltimate Pressurembar70Inlet Diameter G1 1/4''Voltage50Hz380-415V60Hz380-440VMotor PowerkW3Rotate Speedr/min2980Noise LeveldB80Net Weightkg185Detailed PhotosInstallation InstructionsCertificationsCompany Profile/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
