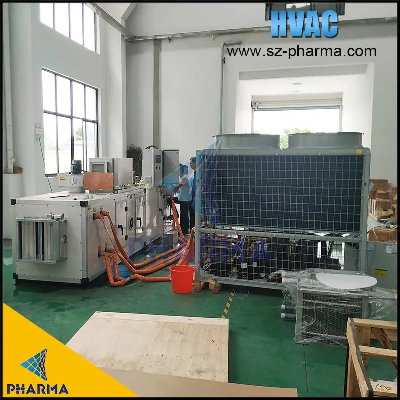

Air Conditioning Unit for Cleanroom Air Supply

The air conditioning system is a control system that includes temperature, humidity, air cleanliness and air circulation.The principleof air conditioning to supply cold air, heat or dehumidification is similar, using the refrigerant to evaporate or coagulate under the action of the compressor, thus triggering the evaporation or condensation of the surrounding air to achieve the purpose of changing the temperature and humidity.StructurePanels and frame are made from galvanized steel protected with polyester powder painting to ensure total resistance toatmospheric agents.Direct expansion coils with condensate drain tray.Hermetic compressorHigh efficiency scroll compressor for the whole range, with built-in thermal overload cut-out and crankcase heater,mounted on rubber vibration dampersRipple type acoustic insulation for compressor section, and thermal insulation for coil and fan section, low noiseCentrifugal fanForward curve centrifugal fans for air treatment section and axial fans for condensation section. Front, side and underside air discharge of the treatment unit. High external pressure, long air supply distanceElectric panelElectric panel consists of breakers and contactors for compressors and fan motors, phase sequence relay and other necessary protection devices for the main components.Easy operation line controllerCooling/Heating/Auto. Error indication. Timing on/off.  Cooling capacity41.6KWElectric Heating capacity18KWRated air volume8600m3/hFresh air ratio20%Humidification capacity15KG/H Residual pressure outside machine850PA/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
