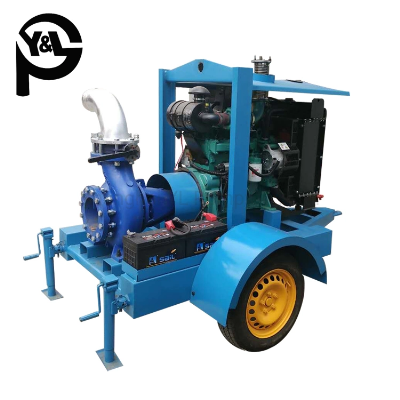

Diesel Water Diesel Engine End Suction Centrifugal Pump for Sales

Horizontal Single Stage End Suction Centrifugal Pump  IntroductionOur end suction centrifugal pump is specialized in pumping water , liquid, chemical substances, etc. With compact structure , its working diameter ranges from 50mm to 300 mm, each model of our product has 4-5 impellers with different sizes, the rotation speed is 1450rpm, 1750rpm, 2900rpm, 3500rpm for optional. This circulation for air conditioner, sewage treatment and other fields.DA is used for handing clear water or the liquids similar to the water physically and chemically finding the applications for water feed and supply service in mine, plants and towns, air -conditioning, extinguishing and irrigation.In spite of the same specification, the pump's performances vary with the diameter of the impeller. (Indicated with the block letters A, B and C in the type.)The pump is simple in structure, reliable in performances, small in size, low in power consumption, convenient in maintenance of good cavitation proof.Specification of Centrifugal Pump1. Working RangeSpeed2900r/min1450r/min or 1480r/minMax. Capacity132L/s300L/sMax. Head150m550mMax. Speed3500r/min (when using the power of 60Hz, the dia. of impeller is reduced)Max. Working Temperature105ºCShaft SealPacking Seal or Mechanical SealPacking or mechanical seal-10ºCWorking PressureGenerally it is 1 Mpa, While the parts of undertaking pressure of DA40/32H, DA50/32H, DA65/32H, DA80/32H, DA100/32H are fabricated with nodular cast iron or cast steel, it can increase to 1.6Mpa. When needed to apply to the other pumps, please state in the order.2. Pump and Parts MaterialPump CasingGrey Cast Iron; Nodular Cast Iron; Stainless Steel 304/316/316LImpellerGrey Cast Iron; Bronze; Stainless Steel 304/316/316LShaftStainless Steel; Chrome SteelShaft SleeveStainless SteelCasing RingGrey Cast Iron; Bronze3. Model TableHere is the part of our models, if you need more pump models, please contact me.DA ModelCapacityHeadSpeedPowerImpeller Dia.Shaft Motor m3/hmr/minkwkwmmDA32/2616.2 89.3290011.76 1526427.0 8214.52 18.532.4 75.316.28 18.5DA40/2621.6 93290013.67 1526436.0 86.516.62 18.543.2 81.518.08 22DA50/2036.0 62290010.48 1521460.0 5613.07 1572.0 5114.70 18.5DA65/2672.0 98290030.49 37264120.0 89.939.95 45144.0 82.345.12 55DA80/26114.0 95290045.01 55264190.0 83.557.59 75228.0 7463.79 75DA100/20171.0 58.7290039.04 45214285.0 50.148.59 55342.0 4252.49 75DA125/20216.0 56.5290055.84 75214360.0 4964.89 90432.0 42.568.94 90DA32/266.6 23.714501.42 2.226411.0 22.41.76 2.213.2 21.41.92 3DA40/3210.8 37.514503.56 5.532918.0 35.64.36 5.521.6 33.84.73 5.5DA50/3230.2 35.614505.64 7.532950.4 31.17.36 1160.5 27.88.32 11DA65/3239.0 3714507.28 1132965.0 349.40 1178.0 31.710.36 15DA80/4060.0 56.5145017.92 22409100.0 52.223.11 30120.0 47.825.52 30DA100/4090.7 56.8145022.62 30409151.2 51.830.03 37181.4 4734.39 45DA125/50172.8 95.1145075.82 90525288.0 93.8103.58 132345.6 91118.09 160DA150/50289.4 981450115.25 132525482.4 93.8156.91 200578.9 89.5178.53 200DA200/50414.7 88.51450153.71 200525691.2 84195.13 250829.4 80.2219.50 250DA250/50587.5 87.51450199.92 250525979.2 81.5260.18 3151175.0 75.5284.12 315DA300/40702.0 49.51450137.09 1604091170.0 40.8149.37 2001404.0 38.7170.01 200Application of Centrifugal Pump1. Constructional Engineering: clear water transportation, pressurization system, air condition water circulation system, fire extinguishing system, swimming pool and water circulation system.2. Industry: circulating cooling system, process water for paper-making and paper pulp, steel production, shipbuilding, sea transportation and other manufacturing industry.3. Mining Industry: water supply, mine drainage, generating station, etc.4. Others: Municipal water supply, agricultural irrigation and some others.Our Services1. Delivery: Delivery time will be on time as the contract. Usually, our company need 25 working  days for diesel engine pump, and for bare shaft pump, it takes 15 working days,2. Warranty: 12 month for the pump body, 3 month for the main working parts.3. Package: We use plywood case to pack our pump, which is durable for ocean transport.4. On-sales Service: we will clear show you everything in fact when you place an order with us. We will take photos or videos to show you our production situation, and report the production situation to you.5. Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.About UsOur ClientsOur CertificateOur Company  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
