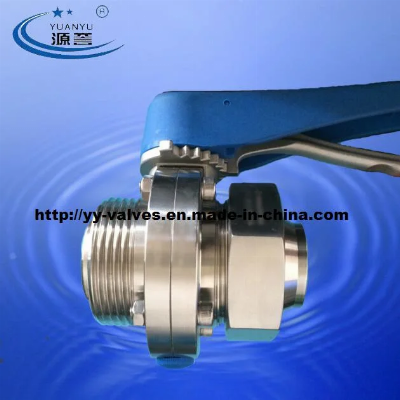

Sanitary Butterfly Valve (full forged)

Sanitary Butterfly Valve (Full Forged) Material of valve: SUS304/SUS316L, AISI304, AISI316L Size: DN20-DN150/1"-6" Standard of valve: DIN/SMS/3A/ISO/IDF       (3A thread, DIN thread, SMS thread, BSP thread etc) Material of seal: VMQ/EPDM/FPM FDA117.2600 Connection mode: Weld/clamp/thread/flange/union Certification: Material inspection report Power: Pulling handle/multi-position plastic handle/multi-position stainless steel handle/electric actuator/pneumatic head Three type of actuator: Normally open(NO), normally closed(NC), Air/Air(A/A) Work principle: This kind of valve can be handled by manual or an electric actuator, and also can be handled by a pneumatic actuator.  Medium: Food, beverage, dairy, pharmacy.  Don't hesitate to contact us if you need more details of products. We can produce this kind of product according to your requirement if your specification is out of our standard.  CE Certificate can be provided. Technical Data    Material Contact with the product components 304/316L(1.4306/1.4404) Can provide material inspection report  Materal no contact with the product components 304(1.4301) Can provide material inspection report Sealing material Standard silicone Adopt sealing material with all the seal material the FDA 117.2600  Option EPDM/FPM Adopt sealing material with all the seal material the FDA 117.2600 Pressure Pressure of work  0-10 bar   Control air pressure  5-8 bar  Temperature Working temperature  Silicone:(-50~+180ºC) EPDM(-20~+135ºC) FPM(-30~+230ºC)   sterilization temperature 150ºC(Max 20min)  Surface treatment Inside surface treatmentRa≥0.4-0.8μm    Surface treatment Ra≥0.8-1.6μm   Connection The diameter weldingDIN11850-2,DIN11850-1,3A,SMS,ISO,IDF,BS....    Connection mode:weld, triclamp,thread,flange,union,nut,etc   Optional driven Brainpower    Pneumatic controlPneumatic head and fixed bracket  Manual handle modepulling handle (round puling handle, square pulling handle) Multi-position handle(stainless steel&plastic) American type stainless steel stainless steel multi-position handle/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
