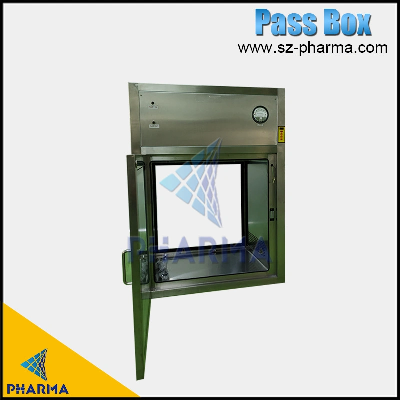

Stainless Steel Passbox 600*600 Pass Through Transfer Window for Lab

Type  Static Pass BoxDynamic Pass BoxModelPH-01PH-02PH-03PHD-01PHD-02PHD-03External size(mm)660*500*580760*600*680860*700*780660*500*1400760*600*1500860*700*1600Internal size(mm)500*500*500600*600*600700*700*700500*500*500600*600*600700*700*700MaterialSUS304 Stainless steel InterlockElectronicalUV Lamp30W*1HEPA Filter/Efficiency≥ 99.999% at 0.3umClean air speed/0.36~0.54m/sThe Pass through box is a clean room auxiliary equipment, its function is to purify the goods pass the buffer between indoor and outdoorclean area to prevent items due to the pass to open the door and destroyed the clean room air and chamber pressure, morecan reducethe operating personnel move to prevent the entry of the dust of the outer region, the stability of the clean room. 304 stainless steel mechanical interlock transfer window, cold-rolled plate spray mechanical interlocking pass the window Airshower passwindow.This facility is a kind of auxiliary equipment for the clean room and is mainly applied to the goods transmission between the clean and non-clean areas, preventing the outside dust particles from coming into the clean area due to air circulation. By the way, the possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintained.Specifications1.Cold steel material or SUS304  2.The internal circular plate chamfering processing, no dead angle 3.Embedded ultraviolet germicidal lamp on top 4.Two-door for large angle square window 5.Double hollow toughened glass observation window 6.Soft contact control switch, microcomputer program 7.Electronic interlocking system 8.With the power indicator light   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
