Sink Seam Polish Machine Bowl Grinding Machine

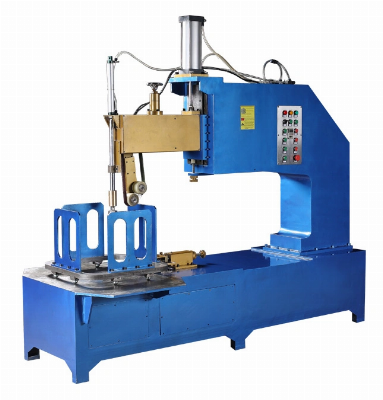

GM Series Automatic Sink Edge Grinding Machine after Rolling Seam Welding1.General DescriptionThis Equipment is specially designed for Grinding the edge of Stainless Steel Sink after seam welding.When it work,the workpiece turn around by the even speed,and the polishing strip will seam welding track automatically until it is finished completely,by this way the workpice will be polished equably and beautifully,you cannot find the seam welding track clearly.2.Sketch and Photo of the Machine  3.Machine Working Process and StepLoad the Workpiece to the Fixing Jig of Working Table →  Start the Machine→ The Grinding Strip and Sink Workpiece Start to Go Round and Round,Up and Down→ Polishing Until Finish → Automatic Back to the Original Position→Unload the Workpiece.4.Main Parts List of the Machine4.1 Air Cylinder and Pressure System;4.2 Beeline Track;4.3 Motor Power System;4.4 Grinding Strip;4.5 Special Design Fixing Jig and Table;4.6 Main Body of Machine;4.7 Electric Controlling Box;4.8 Machinery Movement System; 5.Main Technical Parameter of Standard Model Machine5.1 Machine Dimension: L:2400mm×W:100mm×H:2200mm(Or designed specially basing on the sink workpiece);5.2 Polishing Length and Width: 1300mm×600mm(Or designed specially basing on the sink workpiece);5.3 Total Power: 30KW;      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
