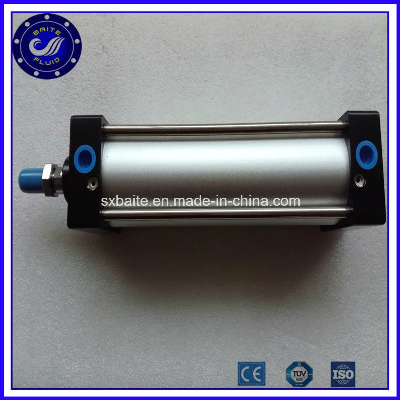

Aluminum Piston Double Acting Adjustable Long Stroke Pneumatic Air Cylinder

 aluminum piston double acting adjustable long stroke pneumatic air cylinderProduct FeaturesThis series of cylinders are standard pneumatic cylinder, with complete specifications and wide applications.1) Working medium: double actions2) Motion pattern: filtered air 3) Max. operating pressure: 1.0MPa 4) Min. operating pressure: 0.1MPa 5) Ambient temperature: -5~70°C6) Operating speed: 50-500mm/s 7) Oil: lubricated and not lubricated8) Joint pipe bore: 1/8"-1/2"9) Cushion: adjustable cushion at both endsProduct specificationsMeets StandardsCorresponds to ISO15552,withdrawn ISO 6431,DIN ISO 6431, VDMA 24 562,NF E 49 003.1 and UNI 10290Bore Diameter(mm)32,40,50,63,80,100,125,160,200,250,320mmStroke Range(mm)5-3000mmCushioning TypeAdjustable at both endsOperating MediumFiltered compressed air, with or without lubricationCylinder ActionSingle acting or Double actingPosition SensingProximity SensorType of MountingFA,FB,CA,CB,TC-M,LB,etc.Product DescriptionProduct detailsProduction Workshop Cylinder AccessoriesQuality AssuranceMain Equipment:automatic coil winding machine, precision automatic die-casting machine, precision extrusion machine, forging machine, CNC machine, milling machine, turning and milling machine, four-axle CNC milling machine, injection machine, vulcanizing machine, surface treatment, electro coating line, automatic painting line, sealing parts pressing machine, as well as 200 testing devices like projectors, direct-reading spectrometer, 3D measuring apparatus, salt spray testing machine, and 10 automatic processing lines.Perfect Inspection Process: Raw material inspection (5steps)- Raw materials testing is to ensure the raw material conforming to the order requirements.Process testing(10steps)-Each processing step testing is to guarantee each step product qualified.Factory testing(6steps)-Assure 100% product qualified rate to meet customer's requirementsContact UsAll products can be customerized designed . We will supply professional service within 24 hours .Welcome to contact . /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
