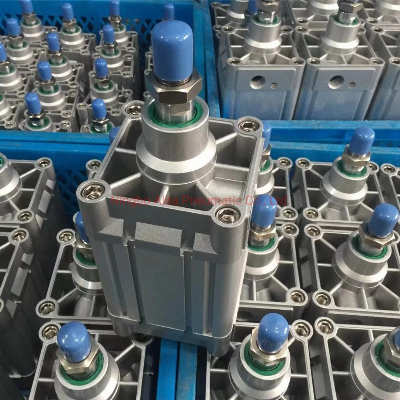

ISO6431 DNC Series Aluminum Standard Air Cylinder Double Acting Pneumatic Cylinder

1. Good replacement for Standard cylinder.2. Standard design,simple structure,low starting pressure,smooth motion.3. Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly,safely and with low noise .4. Using self-lubricating bearing, the piston rod is lubrication free.5. Precision grinding piston rod to guarantee long working lifetime.6. With magnet and sufficient fixing style are available.Product features1.Standard cylinder manufactured by our enterprise;2.The seal of piston adopts heterogeneous two way seal structure.Its dimension is tight and it has the function of oil reservation;3.It is tie rod cylinder.The cylinder barrel and front/rear cap jointed by tie rods with high reliability;4.The buffer adjustment of cylinder is smooth and steady;5.Cylinders and mouning accessories with several specifications are optional;6.The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150ºC. Bore Size(mm)3240506380100ActionDouble acting typeFluidAir(filtered through 40u filter element)Operating Pressure0.1~1Mpa(14~145Psi)Proof  Pressure1.5Mpa(215Psi)Fluid temperature5-60ºCCushionAdjustable air bufferCushion stroke(mm)273036Port SizeG1/8''G1/4''G3/8''G1/2''MaterialAluminum  alloyMounting TypeDNCBasic type:  FA/FB/CA/CB/CR/LB/TC/FTC/TCM1/TCM2DNCDBasic type: FA/LB/TC/ETC/TCM1TCM2DNCJ  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
