Unique Patent Structured Packing

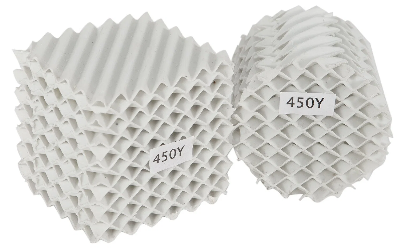

Ceramic Structured PackingCeramic surface can generate extremely thin liquid film. Turbulent liquid flow and tortuous vapor flow passages promote mixing of liquid and vapor with low pressure drop. These are reasons that our ceramic structured packings have the same mass transfer efficiency as metal packings. Meanwhile, they are much more resistant to corrosion and high temperature than metal packings.Excellent FeaturesHigh liquid & vapor loading. Column could be designed smaller for new equipment and capacity could be increased remarkably for existing column revamp. High mass transfer efficiency. Much higher specific surface area than random packings. Low pressure drop and considerable energy savings. Wide turndown ratio. Easy to scale up. Suitable for all sizes of columns. High resistance to acids and alkalis, especially to H2S, naphthenic acids and chlorides.SpecificationsTypeSurface Area(m2/m3)Void Rate(%)Bulk Density(kg/m3) Corrugation Height(mm)Pitch of Corrugation(mm)Wall Thickness(mm)100X/Y1009226030502.0-2.5125X/Y12590370 / 32023422.0-2.5160X/Y1608538417301.5-2.0250X/Y2508045013221.2-1.5350X/Y350784909151.2-1.5400X/Y400755208121.0-1.3450X/Y450725527.5111.0-1.3470X/Y47075540710.51±0.2500X/Y500746005100.8±0.2550X/Y550736205100.8±0.2MaterialsUniversal CeramicPhysical CharactersDensity g/cm3Moisture Absorbency %Heat-Resistant ºCPressure Resistant MPa2.5130   Chemical CharactersSiO2Al2O3Fe2O3CaOMgOLossAcid-Resistant>72%>23%
