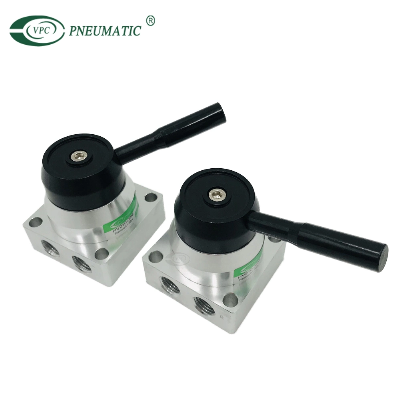

4hv Series Pneumatic Hand Rotary Valve

4HV Series Pneumatic Hand  Rotary ValveProduct DescriptionThe direction-change turns lightly with good hand feeling and exact orientation;  Large effective circulating area leads to little pressure loss;  Panel and body installation are optional. The panel installation can be attached with installing nut. Ordering CodeProduct Specifications   Model4HV2-064HV2-084HV3-084HV3-104HV4-154HV4-20Working MediumClean Air Acting TypeExternal ControlWays4 Port 2 Position,4 Port 3 PositionJoint SizeG1/8"G1/4"G3/8"G1/2"G3/4"Sectional Area14mm2 (CV=0.78)16mm2 (CV=0.89)30mm2 (CV=1.67)33mm2 (CV=1.83)88mm2 (CV=4.89)95mm2 (CV=5.27)Working Pressure0 to 1.0MpaGuarantee Pressure1.5MpaWorking Temperature-20 to 70ºCWorking Angle90°Main DimensionsCompany ProfileNingbo VPC Pneumatic company is dedicated to providing the highest quality hydraulic and pneumatic products in order to assure we achie requisite level of product performance, reliability and value for our customers.We manufacture and export Pneumatic Cylinders,Directional s Valves,air fittings,air hose,air preparation unitspressure regulators,etc pneumatic automation components,these are widely used in automa industrial,robots, packaging equipment, blow molding machine equipment and Medical Industry,food and beverage, metals, mining and min sciences, automotive,marine,transportationwood, paper and printing industriesExport to Europe,latin america the USA,South Asia and middle East,because of high quality,As a 20 years manufacture,we can rovide professional solutions according to your application needs and use industry.Here are what we can with you1:Customized products to save your costs2:Fast delivery and standard package3:200% test before ship4:CE/ROHS/ISO/FDAcertificateExpress(DHL,UPSTNTFEDEX) are all available. Sea and Air transports are available The most suilable transport way will be chosen for you. FAQ:Q1:Are you trading company or manufacturer ? A:We are the Manufacturer from Ningbo,China.We can customize as your requirement,but MOQ requrement. Q2:What is your quality assurance? A:We have strict quality control.If you suffer losses due to transportation orquality failure,you can choose a refund or we can ressue your new goods,the freight will be borne by us. Q3:Do you provide samples ?ls it free or extra A:Yes,free samples can be provided, but you'll pay for the shipping fee. Q4:How long can Iexpect to get the sample and mass order ? A:For conventional sample order,the delivery time is in 5 workdays,and for mass order,the delivery time is in 10 workdays. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
