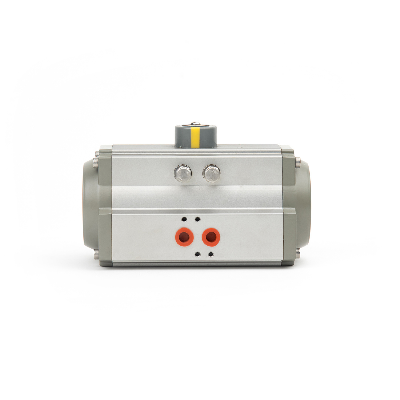

Aluminum Alloy Double Acting Pneumatic Rotary Actuator

Double Acting Pneumatic ActuatorSummy:AT new rack-and-pinion pneumatic actuator is made by Zhitai Valve Co., Ltd., combined with the latest technology at home and abroad. By the innovative and optimized CAD three-dimensional design, it has beautiful and compact appearance and modem model; the application of new materials and processes enables more reliable quality and performance of the products; it's more economical, with models with various specifications; the product is in complete consistence with the new international standard technical specifications, and thus can satisfy the current and future needs.Components:Part NoQuality of MachinePart NameStandard MaterialActual Material11CylinderExtruded aluminum alloyStainless steel21Output shaftCarbon steelStainless steel31O-ring(at the bottom of the output shaft)NBRFluorine/ silicon rubber41Bearing(at the bottom of the output shaft)Nylon46-51Adjusting CamStainless steel-61Thrust Bearing(output shaft)Nylon46-71Bearing(at the top of the output shaft)Nylon46-81O-ring(at the top of the output shaft)NBRFluorine/ silicon rubber91Bearing(at the top of the output shaft)Nylon46-101Gasket((output shaft)Stainless steel-111Elastic damping ringStainless steel-121Position indicatorPPPP+30%GF-131ScrewPPPP+30%GF-144Position indicator piecePPPP+30%GF-152PositonCasting aluminum alloy-162Guide bearing(at the back of piston)Nylon46Fluorine/ silicon rubber172O-ring(piston)NBR-182Guide ring(piston)Fluorine-carbon composite material-195-12Spring assemblyAlloy spring steel-202O-ring(end cap)NBRFluorine/ silicon rubber211Left end capCasting aluminum alloyStainless steel221Right end capCasting aluminum alloyStainless steel238End cap boltStainless steel-242O-ring(adjusting bolt)NBRFluorine/ silicon rubber252GasketStainless steel-262NutNBR-272Adjusting boltStainless steel-Features:Adopts rack and piston double piston symmetrical structure, which enables fast and steady action, high precision, high output power.The cylinder enables its longer service life and low friction coefficient.Both double acting actuators and single acting actuators have same cylinder and ends cap, which makes it convient for changling action mode.Adopts conbined preload safe spring, which is safe and covenient for assembling or removing springs.It enables installall accessories, such as the limit switch box, electric positioner and position sensor. All fasteners are made of stainless steel, which enables long-term corrosion resistance.The connection parts are in line with new international standards ISO5211 and DIN3337(F03-F25).Working Principle:When the air supply pressure enters the medium chamber between two pistons ol the cylinder from the gas port (2), it will make two pistons separated and moving toward both ends of the cylinder respectively; the air in the air chamber at both ends will be disch-arged from the gas port (4), and two piston racks will drive the out-put shaft (gear) to rotate counterclockwise. On the contrary, when the air supply pressure enters the air chamber at both ends from the gas port (4). A will make two pistons move toward middle of the cylinder; the air in the medium chamber will be discharged from the gas port (2). and two piston racks will drive the output shaft (gear) to rotate clockwise (if the piston is fixed in opposite direction, the output shaft will rotate reversely, and it will become double -action reverse-rotation DL model.DR Double-action Output Torque(Nm)Actuator DataAppearance&Connection DimensionCompany Introduction:   Zhitai Valve Co., Ltd is a member of Valve Association of Longwan District, is located in Longwan Central Industrial Zone, Wenzhou City. It'a professional technology company integrated with development, manufacturing, sales, and after-sales services of valve actuators and and self-controlled valves. Presently, our main products include: pneumatic actuators, pneumatic valves and pneumatic control valves; electric actuators, electeic valves and eletric control valves; automatic control products. Our products are widely applied in natural gas, electricity, petroleum, chemical, metallurgical, construction, pharmacy, paper, printing and dying. Zhitai series actuators and valves are the best choice for automatic fluid control engineering and equipment manufacturing. We sincerely welcome customers from home and abrode to visit us for supervision, communication and cooperation. It's a great honor for us to cooperate with you.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
