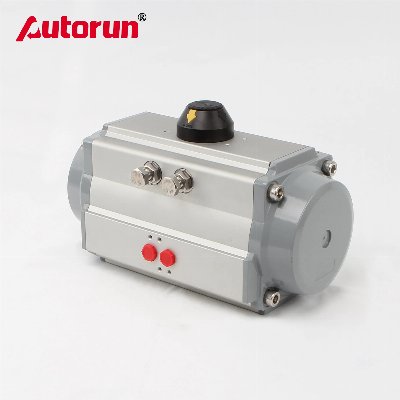

Pneumatic Actuator Single Action

Basic Info.          Model NO. RT052S-RT400SPressure Range0.25-0.8MPaRotate Range90°SpecificationCE, ISO9001OriginWenzhou, ChinaProduction Capacity200, 000/YearSize32-400Largest Torque7800nmTransport PackageShrink Film+Carton+Plywood CaseTrademarkAutorunHS Code841239000Features:Rack & pinion designCompact and light weightISO 5211 mounting patternAdjustable stops for both open and closed positionsAccessory mounting dimensions to NAMUR specificationsMachined gear teeth provide longest life and smoother operationHigh cycle life with low friction bearings on all moving and sliding surfacesSafety contained springs prevent hazards of inadvertent ejection during maintenanceModular design utilizing same body and end caps for both double-acting and spring-return versionsCorrosion resistant with hard anodized body, PTFE coated end caps, and stainless steel fasteners SpecificationsPressure Range: Max. Working pressure 10barAir pressure: 2.5bar~8bar Adjustment Range: 90° ± 5° Ambient temperature: -20 ~ +90° C Type: Double acting, Single acting (spring return)Optional accessories: Solenoid valve, limite switch, electric position, air regulatorLubrication: All the moving parts are coated with lubricants, extending their service life Life Time: One million time   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
