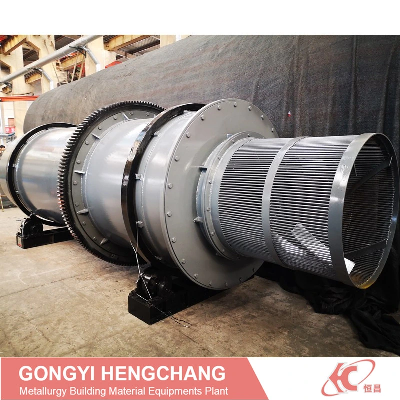

Alluvial Gold Mining Equipment Rotary Scrubber

 The ore trommel washing machine is a large-scale equipment used for washing ore of black and non-ferrous metallurgical mines, iron and steel, metallurgy, chemical industry, and building materials. It is divided into two categories: spiral ore washing machine and cylindrical ore washing machine. Ore washing is the process of removing clay materials from ore; it is widely used in the washing and desilting industry of phosphate ore and iron ore. It is installed before crushing, gravity separation, magnetic separation and flotation operations to eliminate the effects of ore mud on these operations. Impact and harm, improve operating efficiency and obtain good selection indicators. The ore washing machine is a large-scale equipment used for washing ores and stones in black and non-ferrous metallurgical mines, iron and steel, metallurgy, chemical industry, and building materials. The larger processing capacity of the ore washing machine is to meet the high productivity requirements for the cleanliness of ores and stones. Equipment for your business. Ore washing can avoid the muddy material in the mud-bearing mineral raw materials blocking the crushing and sieving equipment. If the raw materials contain soluble useful or harmful ingredients, they should also be washed. Working principle:The cylinder is mounted obliquely on the frame. The motor is coupled to the drum unit via a coupling through a reducer to drive the drum unit to rotate about its axis. After the material enters the cylinder device, due to the tilting and rotation of the roller device, the material on the sieve surface is turned over and rolled, so that the qualified material (the product under the sieve) is discharged through the discharge port at the bottom of the rear end of the drum, and the unqualified material (screen) The upper product is discharged through the discharge opening at the end of the drum. Due to the turning and rolling of the material in the drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being clogged. Feature of stone trommel scrubber, prevent clogging: when dealing with ore with more mud, it is easy to block the silo, chute, funnel and crushing and screening equipment, so that the processing capacity of the crushing and screening equipment is reduced. The above problems can be solved after mine processing; Obtaining concentrate: Through washing ore, useful minerals in some ores can be enriched to obtain qualified concentrate; for example, manganese ore, apatite ore, iron oxide ore, etc.; , improve product quality: limestone for smelting can be cleaned by washing ore to improve the quality to meet smelting requirements; The rotating speed of the cylindrical screen is high, and the inner wall of the screen is equipped with a longitudinal lifting plate, an annular baffle and a high-pressure water spray device to improve the crushing capacity, and is used to wash ore with high clay content. The barrel is divided into two sections, the front section has no holes for soaking and crushing ore, and the back section has holes for separating soil and stone. Technical parameters:ModelCapacityPowerDrum dia.Drum len.Screen sizeDimensionWeight(t/h)(Kw)(mm)(mm)(mm)(mm)(Kg)GT101510-154100015002-253400*1500*20302200GT102015-255.5100020002-253808*1500*21302800GT122525-407.5120025002-254176*1506*22324200GT123040-607.5120030002-254780*1506*24504800GT153060-8011150030002-255535*1860*25255100GT154580-15015150045002-257021*1860*25286000GT1848150-20022180048002-257400*2150*30007500GT2055200-26030200055002-258500*2500*36008600company profile:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
