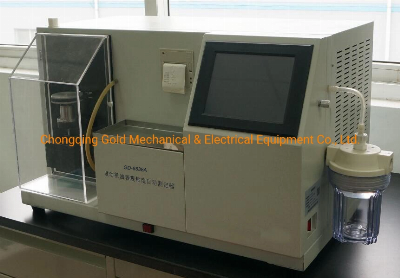

Fast Cooling CCS Method Automatic Engine Oils Apparent Viscosity Tester

ASTM D5293 Engine Oil Low-Temperature Dynamic Apparent Viscosity Tester Introduction: The instrument is designed and manufactured according to the standards China GB/T 6538 Determinationof apparent viscosity of engine oils using the cold-cranking simulator (CCS method) and American ASTM D5293.At the temperature range: -5ºC∼-35ºC,the interval 5ºC temperature condition , and the viscosity range:500mPa•s∼45000mPa•sto detect the apparent viscosity of the apparent oils.   Specifications:I. Main technical features1.    With 8 inch color LCD touch display to realize the operation.2.    With the embedded control technology and two optional operating interface:Chinese or English verstion.3.    It adopts the imported compressor,the cascade refrigeration technology with the fast cooling speed.4.    It uses the imported motor drive,the improved rotor and low torque test mode,high measurement precision and good repeatability.5.    With the rotary encoder to detect the rotate speed and control current automatically to reduce the manual operating error.6.    The parameters of all standard oils can be editable and stored,it can save the 100 groups of history test data and it's convenient to check and reuse.7.    Configuration with miniprinter to automatically print the report after the test. II. Main technical specificationsTemperature rangenormal temperature 0 ~ -60ºCCold bath temperature control accuracy± 0.5ºCtator temperature control accuracy ± 0.05ºCViscosity measurement range500mPa•s∼45000mPa•sUse environment: 10ºC~ 40ºCEnvironmental humidity< 85%Power< 2.5KWPower supplyAC 220V±20%Repeatability in accordance with ASTM D 5293, no more than 2.6%Reproducibility in accordance with ASTM D 5293, no more than 7.3%Standard viscosity oil for calibration: Viscosity standard oil with traceable certificate.  (CL100, CL120, CL140, CL160, CL190, CL220, CL250X2, CL280, CL320, CL380, CL480, CL600, CL740, CL080).ExhibitionBrazil ANALITICA LATIN AMERICA 2017 2017 Photos Show   Workshop Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is a professional manufacturer of Petroleum Products test kitsand electrical testing equipment in China.Our products are sold to most countries in the world and they are highlypopular because our good quality and after-sale service.At present, there are more than 150 employees, of whom more than 70% are technical personnel with college degree or above.With strong technical force and strong development, new products have been launched continuously. Exhibition We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya,Nigeria, South Africa and other countries worldwide. And we have gained strong advantage and high reputation in international market.After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing instrument. PackingGoods are packed in veneer case, which is firm and safe for oversea shipment. Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at: http://chinainstrument.en.made-in-china.comIf you want to know more information...Please leave a message below and click " SEND "Thanks for your time and attention!    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
