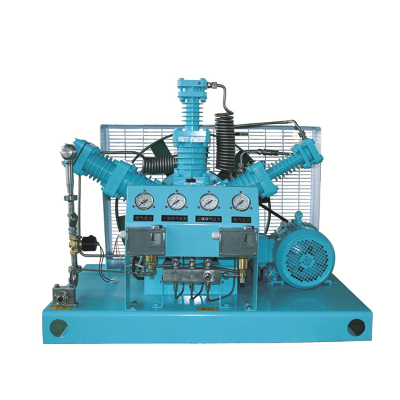

Oxygen Cylinder Filling Station with Water Cooling Air Cooling Method

  Oxygen Cylinder Filling Station with Water Cooling Air Cooling Method          IntroOur Oxygen Cylinder Filling Station is total oil free, do not use any lubricate oil, and for the cylinder use stainless steel material, piston ring is self-lubricated material, all this guarantee oxygen is clean and no-pollution. Oxygen Cylinder Filling Station working speed is slow, normally 200-400 rpm, to keep working do 24 hours heavy duty loading.Normally, according to customer oxygen application condition, our Oxygen Cylinder Filling Station has1~5 pressure stages, by the cylinder, has 1~4 cylinders. Advantage(1)Completely 100% oil free, no oil requires.(2)Oxygen for VPSA PSA and LOX gas source.(3)No pollution, keep the same purity into the gas.(4)Top low cost, low maintenance cost, simple operation, just changes the piston ring.(5)CE approved to meet the requirements of the EU market.(6)According to the customer's specific working conditions, the Oxygen Cylinder Filling Station is designed for single compression, two-stage compression, three-stage compression.(7)Continuous heavy-duty operation can run stably for 24 hours without stopping.(8)Water cooling + air cooling double effect heat dissipation.(9)Equipped with PLC digital display screen and central control chip, the full digital control system is convenient to use and visually display all kinds of data. Product SpecificationModelCapacity/Flow RateInlet PressureDischarge PressurePowerWeightDimension(L*W*H)WWZ-3/4-1503m³/h3-4bar150bar4kw140kg1080X820X850mmWWZ-5/4-1505m³/h3-4bar150bar5.5kw210kg1080X820X850mmWWZ-10/4-15010m³/h3-4bar150bar7.5kw350kg1080X900X850mmWWZ-15/4-15015m³/h3-4bar150bar11kw350kg1250X1020X850mmWWZ-20/4-15020m³/h3-4bar150bar15kw470kg1250X1020X850mmWWZ-30/4-15030m³/h3-4bar150bar15kw500kg1350X1020X900mmWWZ-40/4-15040m³/h3-4bar150bar15kw500kg1600X1100X1100mmWWZ-50/4-15050m³/h3-4bar150bar15kw500kg1600X1100X1100mm      Application Filling CylinderOxygen Cylinder Filling Station is mainly used for filling oxygen breathing apparatus and compressed oxygen self-rescuer high pressure gas cylinder booster pump. It is the filling of oxygen or other non-combustible gases in the large gas cylinders into another gas storage cylinder. It can control the filling pressure automatically.It is an Oxygen Cylinder Filling Station that increases oxygen pressure from source bottle to another gas bottle, let the oxygen pressure of this gas bottle achieve the needed pressure. It is used for pump oxygen, nitrogen and carbon dioxide from source gas bottle and fills in the gas bottle which is waiting for inflating.Oxygen Cylinder Filling Station is mainly used for mining, hospital service, is used for filling oxygen respirator, compression oxygen for oxygen tanks, chemical, oil, medical, fire control and other relevant industries.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
