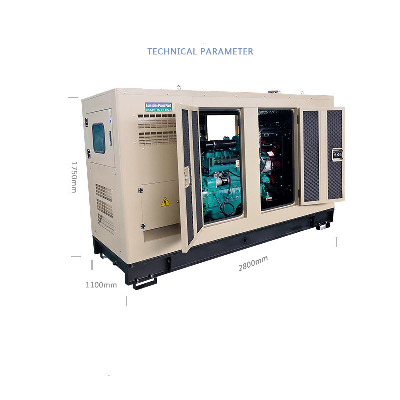

100kw Turbo Charger Cooling Method Diesel Generator with Silent

     Model parametersGenerator Model Prime Power(KW )Prime Power (KVA)Engine typeOil capacity (L)Cylinders NoCylinder Diameter (mm)Stroke (mm) Fuel Consumption (gAw-h)Size (L*W*H)BC-2424304B3.9-G21141021202161650*750*1250BC-3636454BT3.9-G21141021202131650*750*1250BC-5050634BTA3.9-G21141021202061800*750*1250BC-90901156BT5.9-G216.561021201942150*850*1350BC-1001001256BTA5.9-G216.561021202192150*850*1350BC-1201201506BTAA5.9-G216.561021202062300*850*1350BC-1501632046CTA8.3-G223.861141352132350*880*1500BC-1801832356CTAA8.3-G223.861141352252350*880*1500BC-2002202756LTAA8.9-G223.861141451952600*950*1500BC-250250313MTA11-G2A3961251472142900*1150*1600BC-300300375MTAA11-G33961251471942900-1150*1600BC-250250313NTA855-GA36.861401521963100*1000*1800BC-280280350NTA855-G1A36.861401521963100*1000*1800BC-300300375NTA855-G1B36.861401521963100*1000*1800BC-310310388NTA855-G2A36.861401521963100*1000*1800BC-340340425NTA855-G436.861401521963100-1000*1800BC-350350438NTAA855-G7A36.861401521963300*1000*1800BC-440440550KTA19-G45061591591963450*1250*2000BC-500500625KTA19-G85061591591963700*1950*2350BC-550550688KTAA19-G6A5061591591963700*1950*2350BC-600600750KTA38-G135121591591964600*1750*2350BC-640640800KTA38-GA135121591591964600*1750*2350BC-660660825KTA38-G2135121591591964600*1750*2350BC-8008001000KTA38-G2A135121591591964600*1750*2350BC-8808801100KTA38-G5135121591592004600*1750*2350BC-90010001250KTA38-G9135121591591994700*2600*2800BC-100011001375KTA50-G3177161591902025200*2100*2300BC-120012001500KTA50-G8204161591902005700-2300-2550BC-150015001875QSK60G3280161591901946300*2500*2800BC-160016002000QSK60G4280161591901946300*2500*2800BC-180018002250QSK60G8280161591901946300*2500*2800BC-200020002500QSK78G9280161591901946300*2500*2800BC-240024003000QSK78G6466181701901927600*2650*3000              NOTE:1. Noted: Output Voltage: 400V/230V      Prime Power: 50Hz       Rotate Speed: 1500r/min      Prime Power factor: 0.8lag     Insulation class: H2. Environment Condition: 1500 meters altitude, 40 ºC temperature.Generator ModelBC-20GF-1000GFOutput Power20KW-1000KWSteady state Frequency Regulation≤±1%Rated Voltage400/230VStable Voltage Regulation≤±1%Transient Frquency Regulation≤±10%Rated Current36A-1800ATransient Voltage regulation≤±15%Frequency Stabilization Time≤3SRated Frequency50HZVoltage Setting Time≤1SFrequency Fluctuation≤±0.5%Weight710kg-8200KGVoltage Fluctuation ≤±0.5%SizecustomizedText power25kva-1375kvaRated Speed1500RPMNoise95dB(A)Diesel ParametersGenerator Model Rated Power20KW-1000KWOverload Power22KW-1100KWCylinders NoL-Form Four CylindersSpeed1500RPMStarting ModelDC24V ElectricityTypeFour StrokeIntake TypeNormally Aspirated /Turbo ChargeFuel Consumption(g/kw.h)≤216-202Coling MethodClosed Cooling WaterLubrication MethodCombined pressure and splashCylinder Diameter/Distance of travel102/120mm 114/135mm 125/147mm  140/152mm 159/190mmFuel Feeding Methoddirect injectionSpeed RegulationMechanical Speed GovernorsEngine displacement3.9L-50LFuel Type/Fuel ClassChina 0#(Light diesel oil)Compression Rate15.5:1-13.9:1  Generator ParametersGenerator Model Rated Voltage400V/230V  TypeAll the copper brushlessElectrical MadeThree-phase four-wire,neutral ground  ModelBC-20GF-1000GFSteady state Frequency Regulation≤±1%  Frequency50HzShort circuit protectionAir Switch  Insulation ClassHShort-time Current150% 2min  Protection LevelIP23Overload CapacityOverload 10% one hour  Power Factor0.8(Hysteresis)Power20KW-1000KW  Rated Rurrent36A-1800AAdjust MethodAVR(automatic voltage regulator)  Exciter TypeBrushless ExcitationCooling MethodSelf-Cooled  Specification Characteristic 1.Advanced design, reliable performance, long working life2. Set cylinder design durable, small vibration, low noise3.Series generator excitation system can make the unit under any instantaneous load4.The frequency drop can be quickly recovered5.Replace wet cylinder liner, long service life, easy maintenance; Smooth operation, high efficiency6.Two cylinders and one cover, each cylinder 4 valves, full air intake, forced water cooling, low heat radiationProduct PicturesPacking and LogisticsFAQQ1: Do you offer guarantee for the products?A: Yes, we offer 12 month years warranty to our products.Q2: How to select a suitable generator set?A: According to the actual electricity consumption, plant area to evaluate the required power and number of generator sets, we will recommend the most suitable generator set configuration for you.Q3. May you print my logo on diesel generator sets product?A: Yes. Please inform us formally before our production and confirm the design firstly based on .Q4. How to proceed an order for diesel generator set?A: Firstly let us know your requirements or application.Secondly We provide solution according to your need.Thirdly customer confirms the detail specs of the order, and arrange pay the deposit.Fourthly We arrange the production after payment received.Q5. How do you ship the goods and how long does it take to arrive?A: Normally by sea shipping .Shipping time
