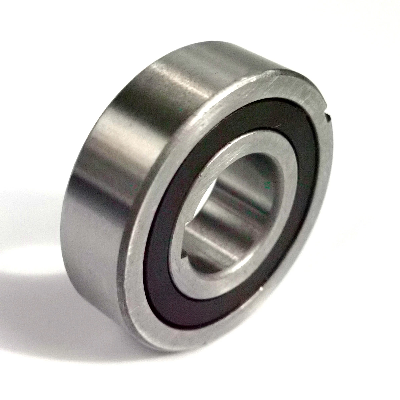

Csk20 Csk20p Csk20PP Sprag Clutch with Keyway One Way Cam Clutch Bearing

Product Description The technical parameters of the one-way bearing (one-way clutch) for scooters are as follows:CSK series wedge-type overrunning clutch is also called one-way rotating ball bearing, and its external dimensions are the same as 62 series deep groove ball bearings. It is a combination of deep groove ball bearing and wedge clutch (except CSK40), and its interior has been filled with grease. The torque transmission is generally an interference fit method. The outer ring is pressed against the machine wall with a tolerance of N6, and the inner ring is pressed against the working shaft with a tolerance of N6. According to user needs, the inner and outer rings can be made of keyways, the model for the inner ring is CSK-P, and the model for the inner and outer rings is CSK-PP. It is suitable for the transfer of printing machinery, packaging machinery, food machinery, testing equipment, etc. Productdisplay TypeSizeBearing seriesDimensionBearing loadsWeightDrag torque  dynamicstatic    CSK(KK)d Outer Dia.LengthTKN1)N maxCC0 TR  [mm] [mm][mm][Nm][min-1][kN][kN][kg][Ncm]  8-2292.5150003.280.860.0150.5  1062003096.8130004.51.560.0320.36  12620132109.3100006.12.770.040.7  15620235111784007.43.420.060.9  17620340123073507.93.80.071.1  20620447145060009.44.460.111.3  256205521585520010.75.460.142  3062066216138420011.76.450.214.4  3562077217175360012.67.280.35.8  40-8022325300015.5412.250.57  TypeSizeBearing seriesDimensionBearing loadsWeightDrag torquedynamicstatic CSK..Pd DLbtTKN1)nmaxCC0 TR[mm] [mm][mm][mm][mm][Nm][min-1][kN][kN][kg][Ncm]1262013210  9.3100006.12.770.040.71562023511  1784007.43.420.060.91762034012  3073507.93.80.071.12062044714  5060009.44.460.111.32562055215  85520010.75.460.1423062066216  138420011.76.450.214.43562077217  175360012.67.280.35.840-8022  325300015.5412.250.57CSK..PP156202351120.61784007.43.420.060.91762034012213073507.93.80.071.1206204471431.55060009.44.460.111.325620552156285520010.75.460.142306206621662138420011.76.450.214.4356207721782.5175360012.67.280.35.840-8022103325300015.5412.250.5745_8519122.5218160018.3615.350.449.350_9020122.5230150019.5317.680.49 CSK..P-2RS12-3214  9.3100006.12.770.05315-3516  1784007.43.420.07417-4017  3073507.93.80.095.620-4719  5060009.44.460.145625-5220  85520010.75.460.175630-6221  138420011.76.450.277.535-7222  175360012.67.280.48.240-8027  325300015.5412.250.610 Company Profile /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
