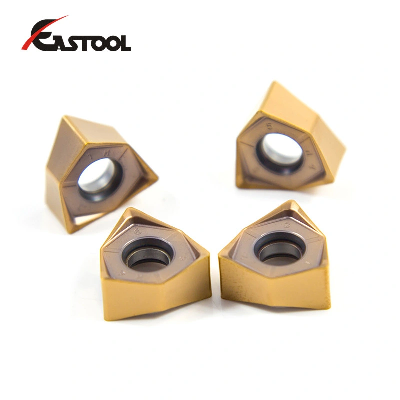

Estool Wnmu080608en-GM Shoulder Milling Inserts with PVD Coating Lathe Cutting Tools

Product Description  Grades Description:     CVD coated cemented carbide GradeDescriptionEquivalent to ISOYC1015MT-CVD coated, the substrate with excellent wear resistance in combination with MT-TiCN,fine grained AL2O3TiN multi-layer coating, which is suitable for finishing of steel.P05-P15YC1025MT-CVD coated, Cutting edge with good toughness in combination with  TiCN+Al2O3(thick)+TiN multi-layer coating,which is suitable for semi-finishing of steel.P10~P25YC1035MT-CVD coated, the substrate with excellent toughness and plastic deformation resistance in combination with TiCN+Al2O3(thick)+TiN multi-layer coating, which is suitable for roughness of steel.P20-P35YC1125Special strength toughness of the insert substrates,perfect combinations with MT-TiCN,ultra fine AL2O3,coatings ,common grade for steel,suitable for steel,cast iron,stainess steel in semi-finishing,finishingP10~P25YC1315The combination of high wear-resistant substrate with MT-TiCN,fine grained Al2O3 and TiN coatings,is a ideal grade of finishing processing of steel,stainess steel in the case of hight speed cutting.P10~P25YC1325With optimized toughness and hardness of the substrate and MT-TiN, fine grain Al2O3 and TiN coating and with a special post-treatment process, the formation of excellent performance of the double-color coating, suitable for steel, stainless steel and cast iron in semi-finishing and finishingP10~P25YC1335Substrate with high strength and strong resistance to plastic deformation combined with MT-TiCN,fine grained Al2O3 and TiN coating having great toughness,is suitable for light load ronghing of steel,stainess steel and cast ironP10~P25YC2105MT-CVD coated, the super fine grain size substrate with excellent hardness in combination with Al2O3(extra thick)  coating, the smooth surface, which is suitable for turning and milling of grey cast iron at high speedK05-K15YC2115MT-CVD coated, the substrate with excellent hardness and stripping resistance in combination withAl2O3(thick) coating, the smooth surface of the tools, which is suitable for turning and milling of cast iron at middle and high speed.K10-K30YC2215High wear-resistant substrate, new generation coating process with perfect combination of MTTI (CN), Super Al2O3, TiCN coating, initial grades of ductile cast iron, forged cast iron, high cutting speed allowanceK10~K30                                                                              PVD coated cemented carbide GradeDescriptionEquivalent to ISOYP30252-4um TiALN PVDcoated,combinating with ultra  fine particles'substrates with high-toughness,                  suitabe for all materials,stainless steel, steel,  cast alloy in finishing,semi-finishingP10-P25K15-K30YP31252-4um ALCr+ALCrSiN PVDcoated,combinating with ultra  fine particles'substrates with high-toughness, suitabe for all materials,stainless steel, steel , cast alloy in finishing,semi-finishing P10-P25K15-K30M10-M25YP32252-4um AlCr + AlCrSiN PVD coating, combined with ultra-fine particle matrix, has high wear resistance, suitable for finishing and semi-finishing of heat-treated steel ,stainless steel and quenched steelP10-P25K15-K30M10-M25YP3325The latest AlCr + AlCrSin PVD coatings, combined with ultra-fine particle substrates, has high wear resistance and excellent performance in finishing and semi-finishing of  stainless and hardened steelP10-P25K15-K30M10-M25YP33302-4um TiALN +TiN PVDcoated,combinating with fine particles'substrates with high-toughness,                    suitabe for all materials,high-temperature alloy Ti alloy in semi-finishing,roughingP20-P30K20-K35YR3025Unique material matrix, with 2-4um TiAlN PVD coating, with high toughness and heat resistance, suitable for high temperature alloy, heat resistant alloy and other difficult to process materials finishing, semi-finishingS10-S25YR3325The latest AlCr + AlCrSin PVD coatings, combined with unique rare metal substrates, offer high wear resistance and excellent performance in finishing and semi-finishing of superalloys and heat resistant alloysS10-S25  Our Advantages1.With strict tolerance & quality control;2.Enjoy excellent wear resistance & high toughness;3.Have very good thermal & chemical stability;4.Anti-deformation & deflection;5.A special Hot Isostatic Press (HIP) process provides quality improvement to the finished products to ensure material reliability.Packaging & Shipping Production ProcessOur Services     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
