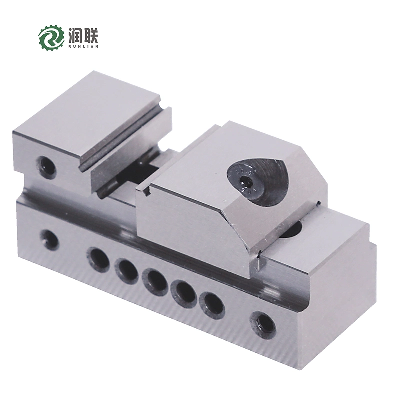

CNC Lathe Accessories High Precision Parallel Blocks for Vise 2022

Product DescriptionWholesale High Precision Tool  Parallel Vise Clamping Vice Milling Machine Bench ViceHigh accuracy CNC Machine Tool Accessories ViseIt is used for machine tools such as surface grinders, milling machines, EDM machines, and wire-cutting machines to complete the machining of angle planes, grooves, and plane inclined holes, and can be used for measuring various angle parts.    VB Series Parallel ViseMaterial: Alloy SteelHardness:HRC55-60Parellelism:0.003mm/100mmSquareness:0.005mm/100mm  Item No. Model No. A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) N.W. ZT10-01 VB10 65 26 29 21 18.5 0-20   ZT10-02 VB15 105 36 48 28 25 0-40 0.9kg ZT10-03 VB20 150 50 53 28 30 0-80 1.6kg ZT10-04 VB25 175 63 63 31 35 0-90 2.9kg ZT10-05 VB30 190 73 70 35 35 0-100 4.3kg ZT10-06 VB35 235 88 80 40 40 0-130 6.5kg ZT10-07 VB40 245 100 90 45 45 0-130 10kg ZT10-08 VB50 285 125 100 45 45 0-160 15kg   Product Show     Hot ProductsCompany ProfilePackaging & ShippingFAQ1:How can I choose the most suitable machines?Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .  2: What's your main products of your company?We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Sharper machine and so on .3: How long is the delivery time?For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client's specifications requirements,it would be a little longer.4.Where is our factory located? How can I visit there?Our factory is located in Weifang City, Shandong Province, 261071 China. You are warmly welcomed to visit us.5. What is your trade terms?FOB, CFR and CIF all acceptable.6: What's the Payment Terms?T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .7: What's the MOQ?1 set .(Only some low cost machines will be more than 1 set )./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
