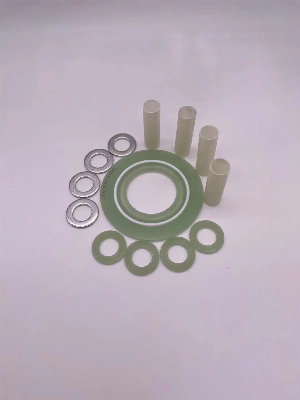

Flange Insulation Gasket Sets (for Low Pressure)

CIERNE Sealing Gaskets has the excellent sealing and insulating design for all types' flanges.The sealing elements encapsulated in the special designed groove, avoid the sealing element broken when the bolts torque are not equal.The material such Nitrile, EPDM, VITON and Telfon can be used as sealing elements, this increase the options for different working conditions.The KXTLG is available in both full-face (Type E) and ring style (Type F)configurations. Depending upon the sealing element selected, the CIERNE is rated for most all hydrocarbon and water service applications.Both retainer and sealing element's temperature limit should be considered together while choose the material. Refer to chart for sealing gasket temperature range and material compatibilities.GASKET MATERIAL  PropertiesASTMPhenolicNeoprene Faced PhenolicG7G10G11Water absorption %D 5701.61.60.070.040.07Flexural Strength psiD 7902250022500270006500062000Compressive strength psiD 6952500025000400006500060000Dielectric Strength Volts/MilD 149500500350800550Tensile strength psiD 6382000020000250005000042000Insulation resistance Meg.ohmsD 25740000400002500200000200000Temperature ºC------------54 to +104-54 to +79-196 to +232-196 to +150-196 to +200SEAL ELEMENT TEMPERATURE LIMITS  PropertiesTest MethodNBRVITONPTFE/PTFE-SENeopreneEPDMTemperature ºC------------40 to +121-29 to +177-196 to +260-40 to +79-54 to +149SLEEVE MATERIAL  PropertiesASTMMylarNomexPhenolicG10G11Water absorption %Flexural Strength psiD 570D 7900.813000N/A200001.6160000.1550000.155000Dielectric Strength Volts/MilTemperature ºCD 149-----------4000-54 to +149400-54 to +232400-54 to +104400-196 to +150400-196 to +200WASHER MATERIAL  PropertiesASTMPhenolicG7G10G11Water absorption %Compressive strength psiD 570D 6951.6330000.07400000.04650000.0760000+Dielectric Strength Volts/MilTemperature ºCD 149-----------500-54 to +104350-196 to +232800-196 to +150550-196 to +200Steel WasherZPS (Zinc plated Carbon Steel) XPS (Xylan coated Carbon Steel)SS (Stainless Steel)Qingdao CIERNE Mechanical Part founded in 2010,located in beautiful Laoshan disctrict following the high technology of Cierne Slovakia.Our company mainly managed in spiral wound gaskets,PTFE gaskets,high temperature graphite gaskets,expanded PTFE gaskets,filled PTFE sheet,graphite sheet,Non asbestos sheet,disc spring,and other mechanical parts and valve,pump using gland packing.We have large stock all the year around and we compete with good price,quick delivery, enthusiastic aftersale service to serve our customers around the world. Our all products are widely using in Metallurgy,Chemicals,Petrol Chemical industry,Electric industry,shipbuilding industry and others. We cooperate with main manufactures this field and exports our products to Europe,Southeast Asia,Africa,etc and get good feedback.Extremely good sealing performance; Non asbestos gasket working in top temperature upto 800ºC. Production technology in the international leading level, material can help plant save cost.Our Tenet:Listen carefully to customers requirement.Build products quality with heart.Provide satisfying service with honestRemember good after-sale service is the only reason we live.Raw MaterialThe self-developed advanced production equipment meets the diversified demands of products and saves cost and materials for users.Technical AssistanceEfficient machining center to provide customers with a variety of conventional and unconventional quality sealing components, to speed up the production cycle, improve delivery speed.R & D CapabilitiesWe have signed contracts with many express companies, such as Fedex, UPS, TNT, so as to facilitate various transportation needs and make transportation more rapid and convenient.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
