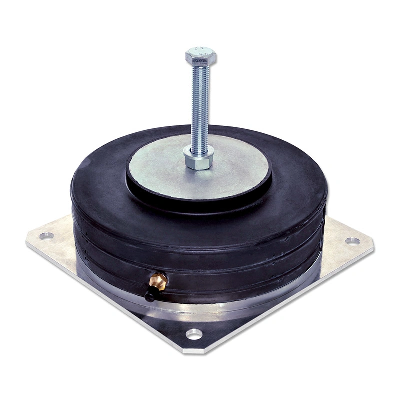

SLM Mount Air Spring mount Pneumatic Isolator Anti-vibration Mounts

  Product DescriptionConstruction Elastomer-metal combination with screwed-on base plate, air chamber made of elastomer reinforced with steel rings, air control with car tyre valve, 10 sizes Properties •    Low frequency active or passive support •    Vertical and horizontal stiffness approx. 1:1•    Vibration isolation•    Shock absorption •    Structure-borne sound insulation•    Anchor-free installation•    Can function unpressurised•    Load region: 0.2 kN -100 kN•    Natural frequency (stat.) 3 Hz - 5 Hz •    Natural frequency (stat.) unpressurised 8 HzArea of application Measuring machines, plane tables, foundations, presses, automatic, cutting presses, nibbling machines, compressors, fans, air conditionersMaterials •   Elastomer body in CR grade with high elasticity, oil-resistant and non-ageing•   Carrier and base plate:     SLM 1- 12 aluminium,     SLM 24 -192 galvanised steel•   Screw grade 8.8, galvanise SLM A-classic valve core.Levelling Levelling range+/- 5 mm or+/- 6 mm, air-pressure controlled Accessories Automatic levelling control: •     Mechanical-pneumatic version(Reset time and accuracy programmable) SLM B-quick-plug valve coreReduced maintenance due to automatic pressure monitoringDelivery contents Pneumatic spring element with hexagon head screw Accessory Mounting plate to distribute planar load over full area of element in cases where machine footprint is undersize   Product Parameters  SLM SeriesDimension tableDimensionsin mm    D  H0    D1       G      LSMachine base thickness (max.)    Ni   X    A    b     d    TWeight    kgLoad(max.)kNSLM 1A 736528M108050+/-5127560730.30.65SLM 3A 1056552M129065+/-51210589730.51.8SLM 6A 1279060M129065+/-615130108731.02.8SLM 12B 1729096M129065+/-615175153732.26.0SLM 24A 24590138M1610075+/-6152552151457.213.0SLM 48A 33890205M1610075+/-61534330514514.726.0SLM 72A 38091255M24*1.514075+/-61738531020622.538.0SLM 96A 46890300M2413075+/-61547040620629.355.0SLM 144A 55091360M24*1.514075+/-61755548020646.576.0SLM 192A 61090430M2413075+/-61561050820652.5100.0Area of Application   Company Profile   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
