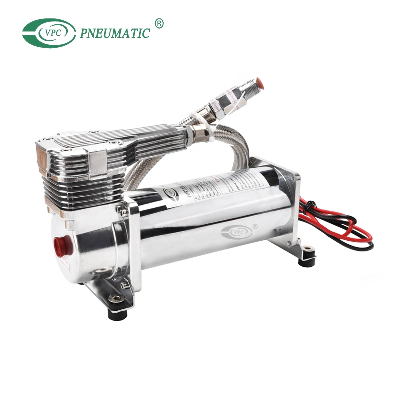

Viair 485c Portable Pump 12 Volt Air Suspension Compressor

viair 485C portable pump 12 volt air suspension compressorProduct DescriptionNew 485C compressor delivers game-changing performance, rated at 100% duty @ 200 PSI. This next generation compressor is a true 200 PSI-rated working pressure pump.The 485C features newly-developed sleek head design, increased duty cycle and quieter dB levels. The 485C is available in Platinum or Stealth Black finishes, and comes equipped with either a stainless steel or a Black sleeved stainless steel leader hose and an inline check valve.Feature- Thermal Overload Protector- 485C (Platinum or Stealth Black) Compressor- Air Filter Assembly- VIAIR Removable Filter Cover- Replacement Air Filter Elements- Remote Mount Filter Assembly- Leader Hose Clip- Air Line Clip with Included Hardware- Mounting Hardware- Stainless Steel Braided Leader Hose with Inline Check Valve- Air Line (For Remote Mount Filter Installation)How To Order Product Name 485C Portable Air Compressor Voltage DC 12V Combined Max. Amp Draw 23A Max Working Pressure 200PSI(1.37Mpa) Ingress Protection Rating  IP67 Max Duty Cycle 100% @ 200 PSI Flow Rate 1.8CFM@0PSI Metal Hose Ø14mm*0.5m Check Valve Threads 1/4"G,1/4''NPT,3/8''G,3/8''NPT Main Dimension(LxWxH) 27cm x 10.5cm x 16.5mm Net Weight(Kgs) 5.5kgs Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs.   PERFORMANCE DATAPSICFMABARLPMA02.241207012101.841415115201.751624716301.671734418401.611844120501.541953821601.472063521701.422173222801.362182922901.322927221001.23221025231101.17221122221201.11221221211301.06221321211401.012313.821211500.9722   1600.9222   1700.8822   1800.8421   1900.7721   2000.7321    * Supply Voltage: 13.8 Volts   FILL RATES2.5 GALLON TANKFILL RATE0 to 200 PSI4 min. 50 sec. (± 10 sec.)165 to 200 PSI1 min. 15 sec. (± 05 sec.)5.0 GALLON TANKFILL RATE0 to 200 PSI9 min. 45 sec. (± 15 sec.)165 to 200 PSI2 min. 25 sec. (± 05 sec.) * Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.   Why choose us?Sincere service,all message and question will reply within 2 hoursOEM serviceFree samples will be send for your evaluationCustomize as your requirementWell-trained staff,Import Highpoint machine, top raw materialsTop quality,Efficient,Professonal Good after-sale services,any quality failure,you can choose a refund or we can reissure your new goods,the freight will be borne by ourselves. Company ProfileVPC company,which was founded in 1985,as a leading manufacturer,is dedicated to serve the automation and labor saving requirements with our pneumatic product range.Above,coupled with close connection with customers'requirements,enable us to manufacture and make good valve,high quality products and to operate successfully around the world.As natural result of such policy VPC has be recognized to be in compliance with the requirements as provided for the quality system standard ISO 9001:2000,as well as the CE Certificate,which is the first pneumatic enterprise who get both certificates in Ningbo,China.VPC bulit an excellent sales team is talking advantage of a widespread net of local and foreign distributorsin constant expansion in the main worldwide strategic areas.We believe the diversity of our product line,and the sincere work of our staff will make VPC to be world class performance leaders of pneumatic products.CertificationsPackaging & ShippingVPC BoxWhite BoxColor BoxVPC CartonPallet  CylinderFRL UnitsFittingTubeAir CompressorVU-4F2W160-4FSample37.5x26x25cm56x37x31cm45.5x32x21cm68x43x41cm34x30.5x22.5cm43x41x36cm46x33x22cm23x18x16cmDelivery time:conventional productscustomized productsspecially customized productson the day of payment6 workdays10 workdays.Payment term:PaypalTTWestern UnionDPLCMoney GramOnline BankPay laterDAYESYESYESYESNOYESYESYESNOTransportation:Express(DHL,UPS,TNT,JCEX,FEDEX) is available.Sea and Air transports are available.The most suilable transport way will be chosen for you. FAQQ1:What is your quality assurance?A:We will inspect one by one before delivery.If the product is damaged in transit or has quality problems, you can choose to refund or resend the product, and the freight will be borne by us.Q2:What is your terms of payment?A: TT ,We'll show you the photos of the products and packages before you pay the balance.B: Paypal payment, Bank transfer,Alibaba Trade Assuranceorder also available.Q3: How about the lead time?A: Normally it will take 3-7 days for our routine products.Q4:What is your sample policy?A: Some free samples can be offered if you contact us.Q5:How about the warranty?A: 1 year warranty.Customer Feedback    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
