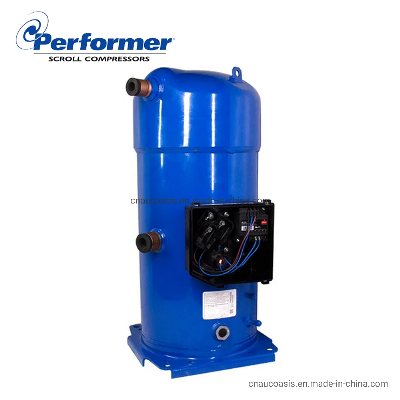

25HP Sz300A4ABB Performer Scroll Compressor for Refrigeration Air Conditioner

25HP SZ300A4ABB Performer Scroll Compressor for Refrigeration Air ConditionerDescription Dan foss Performer focuses on enhancing comfort, efficiency, and sustainability for residential, light commercial, commercial and industrial HVAC applications such as rooftop, chillers, process cooling, packaged units etc. with: 1. The widest product range in inverter technology: prequalified compressors and drives from 2.5 to 26TR (up to 52TR in tandem) 2. Excellent energy efficiency across the complete scroll compressor range, among the best in the industry. 3. Suitable for low ODP refrigerants like R410A, R32, R407CSmaller compressor footprint for compact systems 4. Reduced sound levels, for greater comfort in residential and commercial areas. 5. Refrigerant: R134a; R407C, 6. Segment usage: Air conditioning, 7. Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60     Performer series such as SM, SY,SZ,MT, MTZ,SH,LTZ,MTM are supplied. We supply all kinds of compressors such as brand Copeland, Performer/Maneurop, Hitachi, Panasonic/Matsushita, Toshiba, Tecumeh, Sanyo, Bizter, Carrier, Daikkin and so on. If need further information, please contact with us. Performer Scroll Compressors: R407C SZ Series Model:SZ084,SZ090,SZ100,SZ110,SZ115,SZ120,SZ125,SZ148,SZ160,SZ161,SZ175,SZ185,SZ240,SZ300,SZ380; R22 SM Series Model:SM084,SM090,SM100,SM110,SM112,SM115,SM120,SM124,SM125,SM147,SM148,SM160,SM161,SM175,SM185; R22 SY Series Model:SY185,SY240,SY300,SY380;                                                                                                                                                                                                                                                                                                                                                                                                                                                                                             Product Details: Model numberSZ300A4CBEMotor protectionElectronic protection module, 110/240 VGross weight161 kgMounting torque [Nm]40 NmNet weight157 kgNominal cooling capacity at 50Hz64.9 kWApproval standardCENominal cooling capacity at 60Hz87.9 kW ULNominal heating capacity at 50Hz61.9 kWBrand techniqueScroll compressorNumber of starts per hour [Max]12Capacity controlFixed speedOil charge [L]8 LColourBlueOil drain1/4'' flareCompressor power supply [V/Ph/Hz]400/3/50 460/3/60Oil drain torque [Nm]35 NmConfiguration codeSingleOil equalization1/2'' flareConnection typeBrazedOil equalization torque [Nm]66 NmDescriptionSZ300-4Oil reference160SZDiameter [mm]344 mmOil typePOEDischarge connection height [mm]665 mmPackaging height [mm]780 mmDischarge connection pipe size [in]1 1/8 inPackaging length [mm]510 mmDischarge connection size [in]1 1/8 inPackaging weight [Kg]161 kgDrawing number8556094bPackaging width [mm]465 mmEconomizerNoPacking formatSingle packFactory HP [bar]33 barPacking quantity1Factory LP [bar]25 barPhase3Fitting standardODFPower connectionsStud M5Frequency [Hz]50/60RefrigerantR134aGauge port HPNoneR407CGauge port LPSchraderRefrigerant charge [kg] [Max]20 kgGeneration codeARelief valveYesGlass mountingThreadedReverse rotation protectionElectronic moduleGlass torque [Nm]50 NmRLA49.3 AGP LP torque [Nm]15 NmRotational speed at 50Hz [rpm]2900 rpmHigh side max pressure (Ps)31.8 barRotational speed at 60Hz [rpm]3500 rpmHigh Side TS Max150 °CSegment usageAir conditioningHigh Side TS Min-35 °CShipped instructionsInstallation instructionsHigh Side Volume5 LShipped moduleElectronic protection module mounted in terminal boxHigh value of nominal voltage at 50Hz [V]400 VShipped mountingMounting kit with grommets and sleevesHigh value of nominal voltage at 60Hz [V]460 VShipped oilInitial oil chargeHigh value of voltage range at 50Hz [V]440 VSuction connection height [mm]196 mmHigh value of voltage range at 60Hz [V]506 VSuction connection pipe size [in]1 5/8 inIP protection classIP54 (with cable gland)Suction connection size [in]1 5/8 inLow side max pressure (Ps)20 barSwept volume [cm3]437.5 cm³Low Side TS Max52 °CTechnologyScrollLow Side TS Min-35 °CTest dif [bar] [Max]24 barLow Side Volume34.1 LTest HP [bar] [Max]32 barLow value of nominal voltage at 50Hz [V]380 VTest LP [bar] [Max]20 barLow value of nominal voltage at 60Hz [V]460 VTorque earth [Nm]4 NmLow value of voltage range at 50Hz [V]342 VTorque power [Nm]3 NmLow value of voltage range at 60Hz [V]414 VTotal height [mm]738 mmLRA270 ATypeSZMCC69 AType designationCompressorWinding resistance for three-phase compressors with identical windings [Ohm]0.516 OhmViscosity [cP]32 cP  Gross weight161 kg
