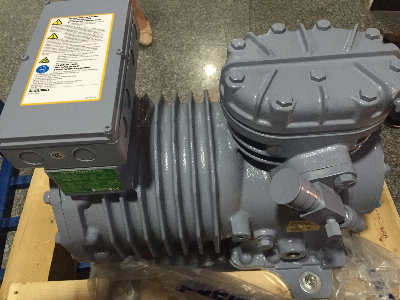

Dll-30 X -Dl - Semi-Hermetic Compressors 3 HP

DLL-30 X - DL - Semi-hermetic compressors 3 HPProduct Features:Polyolester oil chargeOil sight glassSuction and discharge valvesElectrical terminal boxInternal oil-pumpDK Single phase - Thermal overload protectorTechnical Datas: Cooling Capacity at Standard Condition 65.29kWR407C, Evaporating -10°C, Condensing 45°C, Suction Gas Return 20°C, Subcooling 0K (Dew Point data) Mechanical DataNumber of cylinders6.0Displacement @ 50 Hz, cu.m/h152.0Bore/Stroke, mm80.6/57.0Length/Width, mm770/570Height, mm539.0Net Weight, kg268.0Gross Weight, kg284.0Suction, inch2 5/8Discharge, inch1 5/8Oil Quantity, l6.8Frequency Range, Hz25 - 60Base mounting (hole dia), mm457 x 305 (18.0)Sound Pressure @ 1m, dBA77.8Sound Power, dBA88.8High Side PS, bar(g)28.0Low Side PS, bar(g)22.5 Electrical DataMaximum Operating Current, A89.4Locked Rotor Current, A393.0Default Enclosure ClassIP 54 (IEC 34)  AccessoiresMounting Springs4Crankcase Heater200W InternalAdditional Cooling70W Vertical Air Flow FanUnloaded StartAvailableCapacity ControlCapacity Steps 66/33%Discharge Temperature ProtectionHead PTC sensorOil Pressure SwitchOPS2 Electronic SwitchOil Pressure SwitchOPS2 SensorEnclosure ClassIP56Deep Oil SumpMountedAdapter KitFor Parallel OperationCheck Valve (NRV)For unloaded start operationInverterControl Techniques SK 5402/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
