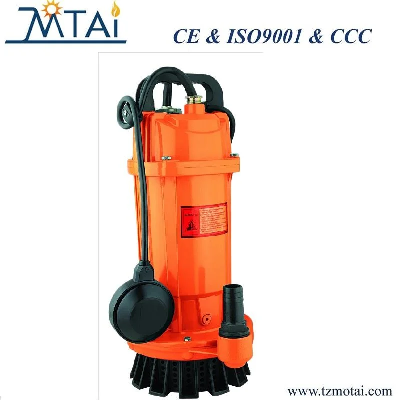

Product Description Product introductionQDX, QX series submersible pump consists of pump, mechanical seal and motor. Pump is at the bottom part of pump, which is adopted centrifugal impeller. Motor which is single-phase or three-phase is at the upper part of pump. Seal is used where pump and motor combine, which is a kind of double-end mechanical seal, O rings are applied to all static joints. Float switch can be equipped to control pump's starting and stopping automatically according to the water level.Main ApplicationThis series pump is small and light, which is widely used in countryside for elevating water from well, irrigation, sprinkling and domestic water supply, and also used in draining off water for fishpond and building site.Work conditionsThe pump can work properly and continuously under following operational conditions :1. Medium is not corrosive, Sand contents should be max. 0.10% by volume and grannular size should be max. 0.2mm.2. Medium temperature shouldn't be over 40°C and PH should be 6.5-8.5.3. The pumps should be operated within rated head.4. The pumps should be fully submerged into water with depth of less than 3m mad max. the pump should be min. 0.5mm over the water bottom and not be inserted into sludge.5. Power frequency should be 50HZ, single phase voltage 220V, three-phase voltage 380V, and voltage fluctuation should be 0.9-1.1 times than the rated.Features of QDX Submersible Pump1. 100% copper wire2. Chrome-plated pump rotor (more resistant to wear and corrode)3. Thermal protector4. High-end bearing and mechanical seal Material MaterialStructure of pumpMaterialCan be selectedPump bodyAluminumCast-Iron / Stainless steelImpellerAluminum/Pump shaft45 # Steel/Cable/Arbitrary length Appellation ModelRated flow(m 3 /n)Rated head(m)Voltage(V)Power(KW)velocity(r/min)pipe size (mm)InchQDXSingle-phasesubmersiblepumps QDX1.5-16-0.371.5162200.372860251 QDX3-20-0.553202200.552860251 QDX10-10-0.5510102200.552860401.5 QDX15-7-0.551572200.552860502 QDX1.5-32-0.751.5322200.752860251 QDX7-18-0.757182201.752860401.5 QDX10-16-0.7510162200.752860502 QDX15-10-0.7515102200.752860632.5 QDX25-9-1.12592201.12860632.5 QDX40-6-1.14062201.12860753 QDX40-6-1.1T4062201.12860753 QDX25-12-1.5T25122201.52860632.5 QDX40-9-1.5T4092201.52860753QXTrip hase SubmersiblePump QX3-20-0.553203800.553000251 QX10-10-0.5510103800.553000401.5 QX15-7-0.551573800.553000502 QX1.5-32-0.751.5323800.753000251 QX7-18-0.757183800.753000401.5 QX10-16-0.7510163800.753000502 QX15-10-0.7515103800.753000632.5 QX25-9-1.12593801.13000632.5 QX40-6-1.14063801.13000753 QX40-6-1.1T4063801.13000753 QX25-12-1.5T25123801.53000632.5 QX40-9-1.5T4093801.53000753 QX65-8-2.26583802.230001004 QX8-28-1.1T8283801.13000401.5 QX15-15-1.1T15153801.13000502 QX8-35-2.2T8353802.23000502 QX9-22-2.2T9223802.23000502 QX10-35-2.2T10353802.23000502 QX12-45-3T12453803.03000502 QX12-60-4T12603804.03000502 QX12-70-5.5T12703805.53000502 QX20-60/2-7.5T20603807.53000502QDXNew typeSubmersible QDX6-12-0.46122200.4286025/401/1.5 QDX3-24-0.553242200.552860251 QDX3-30-0.753302200.752860251 QDX10-15-0.75T10152200.752860501.5/2 QD10-15-0.75T1015220/3800.753000501.5/2 QDX7.8-15-0.75T7.815220/3800.752800/3000501.5/2 QDX10-23-1.1T10232201.12860501.5/2 QDX10-23-1.1T 10232201.13000501.5/2 WQDK10-18-1.1T10182201.12860501.5/2 WDK10-18-1.1T10183801.13800501.5/2QDXLow viols adveadSubmersiblepump QDX1.5-32-0.7581.5322200.752860251 QDX10-16-0.7510162201.12860502 QDX1.5-38-1.1T1.5382201.12860251 QDX10-20-1.1T10202201.12860502 QDX15-15-1.1T15152201.12860632.5 QDX30-9-1.1T3092201.12860753 QDX15-19-1.5T15182201.52860632.5 QDX40-9-1.5T4092201.52860753 QDX65-7-2.2T6572202.228601004Packaging & ShippingPacking & Shipping :To avoid damp, inner layer wrapped with plastic paperTo lessen vibration, middle layer filled with foamTo avoild squeeze, motor are packed with plywood or wooden caseCustomized package is also accept PROFESSIONAL AND HIGH SPEED LOGISTIC SERVICE Installation Instructions Our AdvantagesADVANTAGE:Pre-sales service: •We are a sales team, with all technical support from engineer team.•We value every inquiry sent to us, ensure quick competitive offer within 24 hours.•We cooperate with customer to design and develop the new products. Provide all necessary document.After-sal
