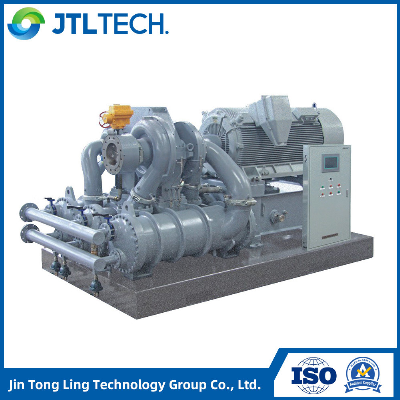

Jtl High Speed Centrifugal Air Compressor

Product Description Complete ETI technology for a full package of whole equipment design, manufacture, and testing; Highly efficient three-dimensional flow unshrouded impeller, professional aerodynamic design, and structural design for optimum aerodynamic characteristics, resulting in the impeller efficiency of over 92%; Dedicated gear pair design and precision manufacturing, assembled with top-quality tilt pad and cylindrical pad bearings into the horizontal split step-up gearbox, leading to higher-stability of high-speed operation, lower vibration, and easier assembling/disassembling and maintenance; Integrated compact structural design, impeller suspended and mounted onto the high-speed shaft of step-up gearbox and sharing the same base with an electric motor, with the base serving as lubricating oil station as well; Optional means of regulation including inlet guide vane regulation, variable frequency regulation, etc., achieving a maximum range of regulation and maximum energy efficiency; Optional impeller materials including titanium alloy, stainless steel, the casing can be cast or welded by stainless steel, meeting the rigorous requirements for strength and corrosive resistance. The products have found wide applications in areas including salt production industry, food and additives, pharmaceutical and bioengineering, chemical(evaporation and concentration and purification), seawater desalination, high-concentration wastewater treatment, etc. With the business model of "service +manufacturing+service", the company provides users with end-to-end complete and full life cycle system solutions, such as system R&D design, fluid machinery product manufacturing, system energy-saving transformation services. The PLC control system developed independently can realize optimal matching between unit energy consumption and system operating conditions. Ensure to provide users with efficient, safe, and reliable gas compressor products, and provide gas compression station general contracting services, such as EPC, BOT, BOO modes. The company will insist on the road of specialization, and finally, achieve the long-term development goal of " building a century-old enterprise and creating a world-class".   Product ParametersModelInlet Temperature(ºC)Evaporation Capacity(t/h)Saturated Temperature Rise(ºC)Shaft Power(KW)JEV3~1050~1102~108~2040~550JEV10~2050~1108~208~20130~1100JEV 20~3050~11015~208~22250~1800JEV 30~5050~11025~508~22410~2850JEV 50~10060~11045~1008~22720~5200JEV 12085~120100~1208~231600~6400JEV 15090~120120~1508~231900~7900JEV 200100~130150~2008~242250~10500JEV 250105~130200~2508~243000~12800Projects   Application Field Partners FAQ Q: Are you a manufacturer or a trader?Answer: We are a manufacturer specializing in the production of fan more than 20 years.Q: Do you have machines in stock to sell?A: Standard products will have sufficient inventory, non-standard customized products we will try to meet your delivery date.Q: How long is the product's warranty?A: We can provide spare parts replacement or whole machine renewal for after-sales problems caused by quality reasons within one year. (excluding damage caused by human factors such as improper operation and environmental factors)Q: How about the quality of your products?A: We dare not say the lowest price in the fan industry, nor the best quality in the industry, but we are the biggest manufacturer and suppler of the fan in China. We are confident that you will be satisfiedQ: Where is your factory? May I have a tour?A: First of all, a warm welcome!Our factory is located at 135 Mid Zhongxiu Road, Nantong City, Jiangsu Province. Our working hours are Monday to Saturday, 8 a.m. to 5 p.m.Please tell us your flight number and arrive time so that we can arrange the service/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
