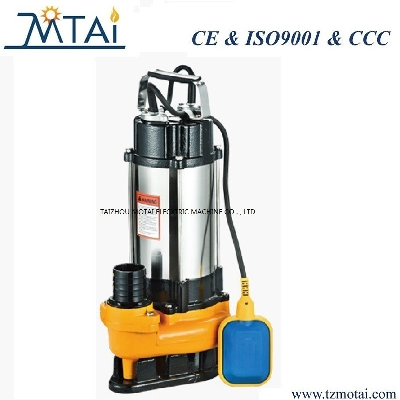

Wqd 0.55kw 0.75HP Cast Iron Sewage Submersible Water Pump

 Product OverviewV(WQ) series single ,three phase submersible sewage pump is more advanced and ideal sewage discharge equipment . The use of "V" instead of "WQ" indicates that the pump has a unique design of the flow parts , wide efficiency area , full head (no overload ) , and can operate efficiently and safely within a large flow range . The impeller's channel anti-clogging design enables the pump to effectively transport the fluid containing solid particles , impurities , long fibers and other fluids with diaetes of 15~35 mm. Selection lf suction structure and stainless steel and special cast iron manufacturing with thorough drainage and corrosion resistance , with the float switch with the change of liquid level can realize automatic control of start-stop . The motor is equipped with a protector that will automatically cut off the power supply when encountering overheating or over-current , which ensures the safety and reliability pump in the harsh environmetn . Conditions of use The electric pump should be able to work continuously under the following conditions of use ;1.Take the center of the impeller as the benchmark , the depth of diving under water shall not exceed 5 meters ;2.Conveying medium temperature does not exceed 40ºC ;3.Input medium PH value of 4~10 ;4.Transport medium motion viscosity :7×10~23×10*m2/s ;5.The maximum density of the conveying medium is 1.2×10kg/m".Technical Data  Model NoV750(F)Oil ChamberCast IronAssemblyBooster PumpPackageWooden CaseApplication Submersible Pump , Sewage PumpImpellerCast Iron/Stainless SteelStructure Single-stage PumpOutletCast Iron/Stainiess SteelStart UpElectric PumpOutlet Size2''MediaWaterCableBlack RoundTheoryCentrifugal PumpWire CopperPowerElectricTransport PackageWooden CaseTypeSewage PumpBrandTZMOTAIIndustryPumpOEMAvailablePerformanceNO Leakage PumpTrademarkOEMVoltage220v/380vOriginTaizhou ChinaFrequency50Hz/60HzProduction Capacity1000pcs/dayHead7-17mHS Code8413709190Speed2900rpm    ModelPowerSpeedVoltageMax FlowMax HeadOutletKWrpmvM3/HMMMV180(F) 0.18       29002205 740/32/25V250(F)0.25290022057.540/32/25V370(F)0.37290022057.540/32/25V450(F)0.452900220/38068.550V550(F)0.552900220/38078.550V750(F)0.752900220/38010/712/1450V1100(F)1.12900220/38010/1614/950V1300(F)1.32900220/380181250V1500(F)1.52900220/38062340V2200(F)2.22900220/380301780    Water outletHigth temperature resistance , oxidation resistance , bright surface , corrosion resistance , friction resistance , mechanical hardness  Solid footingFirm the chassis so that it standsFactory Display Packing & Shipping :To avoid damp, inner layer wrapped with plastic paperTo lessen vibration, middle layer filled with foamTo avoild squeeze, motor are packed with plywood or wooden caseCustomized package is also acceptPAINTING COLOR CODEADVANTAGE:Pre-sales service: •We are a sales team, with all technical support from engineer team.•We value every inquiry sent to us, ensure quick competitive offer within 24 hours.•We cooperate with customer to design and develop the new products. Provide all necessary document.After-sales service:•We respect your feed back after receive the motors.•We provide 1years warranty after receipt of motors..•We promise all spare parts available in lifetime use.•We loge your complain within 24 hours.FAQ:Q: How about the quality ?A: We use high quality raw material for production , and 100% QC in producing process before the goods being packed up . We sincerely expect to work with you for long and stable time .Q: What's  your payment term ?A: 30% deposit before producing , 70% TT against BL copy .Q: What's your warranty ?A: One year warranty , detall as your requirement .Q: Could lput my oun logo it ?A: Sure , we can make your logo after you give us your authorization .Q: Can I geta sample to chedk your quality and how long I can get samples ?A: Yes , very welcome and sample will be finished with in 7-14 days .Q: How about the delivery time ?A: 30-60 days after recelpt deposit .   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
