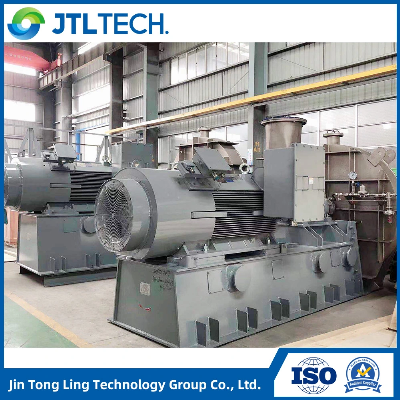

Jz Series High-Efficiency Centrifugal Air Compressor Steam Compressor

I. Production Description:Complete ETI technology for a full package of whole equipment design, manufacture and testing; Standard configuration: core compressor parts, inlet expansion joint, inlet IGV, cooling system, lubrication system, control system, emptying component, vent check valve, vent expansion joint; Optional: inlet filter, monitoring system, sound proof box, electric motor of over IP54.High aerodynamic efficiency for optimum aerodynamic characteristics, made the impeller efficiency reach over 92%;Excellent multiple shafting rotor design for optimum rotor stability and bearing loading;Design and manufacture based on API, AGMA and other top standards, resulting in higher stability of unit operation;Integrated modular construction, facilitating installation and maintenance.The whole set of American ETI technology has been imported, and the key components have independent intellectual property rights. Air compression system, cooling system, lubrication system, and the control system are integrated into a complete structure. Reliable multi-shaft-rotor dynamic design can realize the stable operation of the compressor in all working conditions. Key core components( gears, bearings, seals, oil pumps, filters, oil coolers, monitoring sensors, etc) are all well-known brands at home and abroad. Standard modular design, convenient maintenance. Design of monitoring, protection and regulation in one control system, the interface is intuitive and friendly.   Model Flow (m³/min)Outlet pressure(BarG)Motor Power (KW)Weight Dimension Length(m)Width(m)Height(m )JE600080~1302.2~10.5 355~80010.6 4.12.02.4JE9000130~2002.2~10.5 500~125013.84.32.22.6JE15000200~3152.2~10.5710~180018.65.02.42.8JE21000315~5002.2~10.51000~280023.56.62.83.0JE30000500~8002.2~10.51400~400031.07.23.43.8 JE36000600~10002.2~10.51600~600038.08.54.04.8 JE48000800~15002.2~10.51800~800045.010.54.85.6JE720001000~18002.2~10.53000~1000056.012.55.56.0Remark: stream turbine driving optional. II. Performance and Festures:  1. The flowrate setting range between 45% to 100%. 2. The system is ensured in high efficiency working by IGV+DV double control settings.  3. Stable working, free of pressure impulse and low noise. 4. Integrated design with small installation space which is convenient to replace the old-fashioned and low-efficiency blast fan. 5. The system is of small installation space from integrated design which replaces the old model low efficiency blowers.  6. Oil-free air supplied at the outlet. 7. High-quality bearing structure with long service life, easy operation and low cost maintenance.    8. Standardized control system with well-known instruments and meters, friendly operational system.  III. Applications:IV. Projects:V. Partners:VI. Exhibition:VII FAQ:Q1. Are you a factory?A1. Yes, JTL Tech is the stock listed company in Shenzhou stock market and has production base in Nantong City Jiangsu Province.Q2. Where is your factory?A2. Our Production base in Nantong City Jiangsu Province, and we have other fatories in Shanghai, Wuxi, TaizhouQ3. Do you support OEM?A3. We support free OEM for more than three units.Q4. How long is your warranty?A4. We insist on providing customers with the best protection, the whole machine, 24 months warranty, 36 months warranty for the host.Q5. What certification do you have?A5. At present, we have passed CE and ISO 9001 certification. quality assurance.Q6. What payment methods do you support?A6. We support TT, B / L.Q7. How long is your delivery time?A7. Generally, our delivery period is within 20 days, and the specific delivery period depends on the customer's specific order.Q8. What accessories do you use for your machine?A8. Our spare parts and hosts only cooperate with big brands, we insist on winning customers with quality.Q9. How many years of history does your factory have?A9. Our factory started in 1993, we insist on continuous innovation and research and development. In April 2020, we have just launched a new product, welcome new and old customers to consult.Q10. Do you have an official website?A10. sollantmachinery.en.made-in-china.com If you have any questions, please feel free to contact us.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
