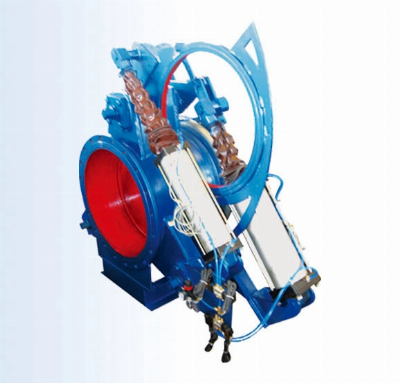

Pneumatic Line Blind Valve-Pneumatic Goggle Valve

Product DescriptionStructural characteristics of pneumatic blind valve:1. Composed of valve body, driving device, clamping device, etc.2. The valve body adopts a three-point structure, with a compact structure, good overall rigidity, and good self weight.3. The valve body and valve plate sealing pair adopts a flexible sealing pair composed of stainless steel and rubber, ensuring reliable sealing. The sealing ring is made of fluororubber, which is resistant to high temperature and has a long service life.4. The clamping mechanism adopts a screw nut type, which can clamp and release quickly and has good self-locking performance.5. The use of explosion-proof motors ensures the safe and reliable operation of valves both indoors and outdoors.6. Can be manually operated on-site and remotely controlled for liquid discharge.7. The electrical control box can also be designed as a separate control device.When the left and right valve bodies of pneumatic blind plate valves become loose during use, it is difficult to control the overflow of gases and other media. Generally speaking, the selection of the gas butterfly valve in front of the blind valve is crucial, as only when the gas butterfly valve in front of the blind valve is completely closed can gas and other media ensure no leakage, making the blind valve safer and more reliable.Product ParametersDNLDD1bn-d0n-d15006006456002020-228-186006307557052020-268-187006308608102024-264-188008009759203524-304-18900800107510203524-308-181000800117511203528-308-181100800127512203528-308-181200800137513203532-304-301300800147514203532-304-301400850157515203536-308-331500850169016303536-308-331600850179017303540-308-331800900199019303544-308-39Certifications Packaging & Shipping Company ProfileOverseas Exhibition /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
