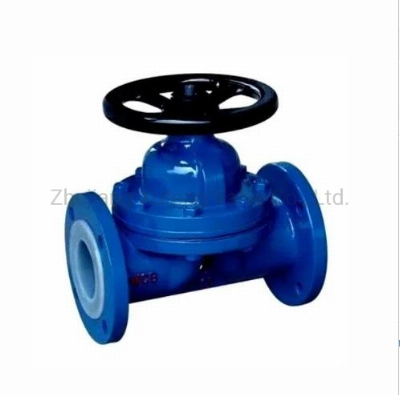

Diaphragm valve is a globe valve that uses a diaphragm as an opening and closing member to close the flow channel, cut off the fluid, and separate the inner cavity of the valve body and the inner cavity of the valve cover.Diaphragms are usually made of elastic, corrosion-resistant, impermeable materials such as rubber and plastic. The valve body is mostly made of plastic, glass fiber reinforced plastic, ceramic or metal rubber-lined material. Simple structure, good sealing and anti-corrosion performance, and small fluid resistance. For low pressure, low temperature, highly corrosive and medium containing suspended substances. According to the structure, it can be divided into roof type, cut-off type, gate type and so on. According to the driving mode, it is divided into manual, pneumatic and electric.Certificate: Basic Info.Model No.: G41F-16CMaterial: Cast SteelStructure: Diaphragm ValveActuator: ManualFunction: Solenoid Valve, Intelligent Type, Field BusConnection: Flanged Diaphragm ValveStandard: DIN, GB, ANSI, DIN, API, ANSI, Asme, Bs, JIS, GBSize: Dn25-Dn250Export Markets: GlobalAdditional Info.Trademark: XTPacking: Standard Export PackingStandard: DN15~DN600Origin: ChinaHS Code: 8481804090Production Capacity: 20000PCS/YearProduct DescriptionTeflon-Lining Diaphragm Valves G41F-16Body materialsBrassSteel type:Cast IronDuctile IronCarbon SteelStainless SteelPlastic type:ABS (Acrylonitrile butadiene styrene)PVC-U (Polyvinyl chloride, unplasticized) also known as PVCu or UPVCPVC-C (Polyvinyl chloride, post chlorinated) also known as PVCc or CPVCPP (Polypropylene)PE (Polyethylene) also known as LDPE, MDPE and HDPE (see note)PVDF (Polyvinylidene fluoride)Body lining materialsDepending on temperature, pressure and chemical resistance, one of the following is used:Unlined typeRubber lined type:NR/Hard Rubber/Ebonite,BR/Soft rubberEPDMFluorine plastic lined typeFEP/F46PFAPODiaphragm materialsUnlined or Rubber Lined Type:NR/Natural RubberNBR/Nitrile/Buna-NEPDMFKM/VitonSI/Silicone rubberFluorine Plastic Type:FEP/F46, with EPDM backPTFE/F4, with EPDM backPFA, with EPDM back FAQQ : Are you a factory or a trading company? A : We are a R & D factory.Q : Which country do you export to? A : We can export to any country according to buyer's need.Q : Do you accept the customized order? A : YES!Q : What is your main market?A : Southeast Asia, Middle East, North America, South America, Europe, etc.Q : Can you give me a discount?A: As you know, we are the manufacturer, so please trust us that our prices are competitive.If the quantity is large, we can consider giving you a discount.Q : If the product has quality problems, what will you do?A : We will be responsible for all quality problems.Q :What is your payment term?A :1.T/T, 30% down payment, balance paid before shipment. 2. Letter of credit. Q: If the product has quality problems, what will you do?A: We will be responsible for all quality problems.Zhejiang Xuteng Valve Co., Ltd.Address :Wenzhou City, Zhejiang Province, China /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
