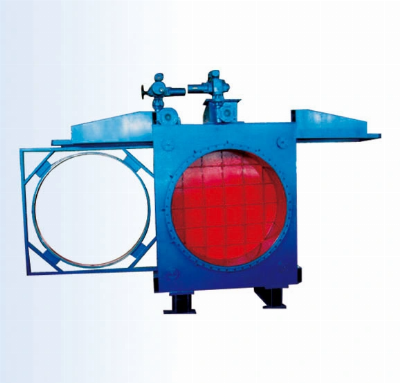

Electric Open Type Eyeglass Valve

Product Name: Electric Open Plug Valve1. Product number: KF941H-0.5/1.5/2.52. Detailed description:1. Nominal diameter: DN400-28002. Applicable temperature: 0-200 ºC3. Applicable media: air, heating furnace gas, blast furnace gas, converter gas, flue gas, etc3. The hydraulic open gate valve consists of a valve body, valve plate, expansion joint, fixed sleeve, spring return cylinder clamping mechanism (DN ≤ 1200 is the screw clamping mechanism), hydraulic motor, hydraulic stationComposition of components such as limiters. When closing the valve, start the hydraulic station to drive the spring reset cylinder, and the sealing pair will be released. When it is in place, the hydraulic motor will act, driving the valve plate to travel from open to closed. When it is in place,The hydraulic motor stops working, the spring return cylinder unloads the oil, the clamping mechanism automatically clamps in place, and the valve is closed. Opening the valve will cause the opposite.4. The electric open plug-in valve is composed of valve body, valve plate, expansion joint, fixed sleeve, electro-hydraulic push rod spring clamping mechanism, walking electric device, limit device, and other components. Valve closing: electrohydraulicThe push rod drives the spring clamping mechanism to release the sealing pair. When it is in place, the traveling electric device starts and drives the valve plate to travel from open to closed. When it is in place, the electro-hydraulic push rod runs in reverse and the spring clamping machineThe mechanism automatically clamps in place and closes the valve. Opening the valve will cause the opposite.5. The hydraulic fully enclosed plug-in valve consists of the main and auxiliary valve bodies, valve plates, expansion joints, fixed sleeves, spring return cylinder clamping mechanisms, hydraulic motors, hydraulic stations, limiters, left and right valve bodiesComposed of other components. Valve closing: Start the hydraulic station drive support spring reset cylinder, the sealing pair is disengaged, and when it is in place, the hydraulic motor acts. The valve plate travels from open to closed, and when it is in place, the hydraulic motor stops Action: The spring return cylinder unloads the oil, the clamping mechanism automatically clamps in place, and the valve is closed. Opening the valve will cause the opposite.6. Drive mode; Electric and hydraulicThe open electric plug valve is applied in the metallurgical blast furnace gas system, playing a reliable and absolute role in isolating gas in the gas pipeline. The open electric plug-in valve produced by our factory,Novel structure, suitable for high dust environments in gas systems, safe and reliable operation, good control performance, and favored by a large number of users.7. The open electric plug-in valve consists of the following parts: 1. Front valve box; 2. Rear valve box; 3. Valve plate; 4. Walking mechanism; 8.  Top opening clamping mechanism; Product Photos:KF941X H-0.5, 1.5, 1.0, 2.5 Electric Open Plug Valve Main Appearance and Connection Dimensions Table:DNDD1Bbn-ΦdHH1LFM-ΦKElectric power(Kg)Walking boardsplintPN0.05/0.10PN0.15/0.254005404956001816-22130035022105004-231.11.58809604505955506001816-22152040024005004-23 1.11.598010605006456006001820-26160045025405004-231.11.5105011806007557058002424-26175050027209008-231.11.5115012807008608108002424-30188472028159508-231.11.5121013208009759208002424-301970800311510458-231.52.214501600900107510208002424-302086880364012508-232.22.2184020501000117511208002428-302250960394012508-232.22.22180245012001375132012002632-3028371165593010608-331.11.52600280014001575152012002636-3030571285653014008-331.11.53250355016001790173012003240-3032571385713015608-331.52.24350475018001990193014003244-3034001428773017508-332.22.25100560020002190213014003248-3040101850840018008-332.22.25760625022002405234016003252-3041101950905019008-332.22.27050775024002605254016003256-3343652050960023608-332.22.28250905026002805274018003460-3343752141856723328-362.22.297001050028002960303018003664-3645542280892525328-362.22.21200013200Company Profile:Package & Shipping:Overseas Exhibition/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
