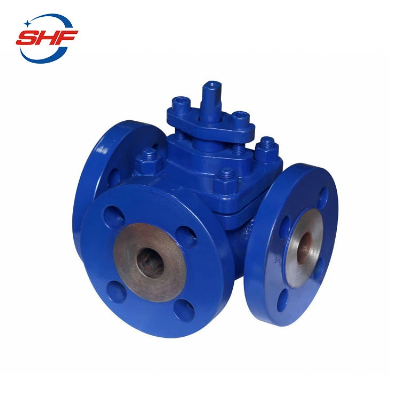

Newly Sell High Quality 3-Way Stopcock Plug Valve

Construction is as follows:  Name Plug valveStructureSleeve type soft sealing plug valveSize  1/2"~20"; DN15~DN500Normal pressure Class 150LB~900LB; PN16~PN160Design standardAPI 599,API 6D,ASME B16.34; BS 5353MarkedMSS SP-25Fire safe designAPI607,API 6FAEnd flangeANSI B 16.5,ASME B16.47; EN1092,DIN2543~DIN2547,AS2129Face to FaceANSI B 16.10,API 6D; DIN3202,EN558-1,EN12982,ISO 5752Top flangeISO 5211Test standardAPI598,API6D; DIN3230,EN12266,ISO 5208Suitable temperature -29~150°CMedium Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.Acidic environmentNACE MR0175OperationHand Operated,Gear Operated, Electrical Actuated, Pheumatic ActuatedStructure- Plug valve with Sleeve type PTFE seal serves as cutting and connecting medium on the pipeline.- It can be used in large-scale Chemical industry .- It is suitable for water, steam, oil, other corrosive acid.- It has reasonable structure, Reliable seal face (Sleeve type PTFE ), Excellent performance,And perfect appearance.- It adopt all around Sleeve type PTFE seal, can ensure zero leakage.Special 360 º metal edge can assure fix Sleeve well.- It is designed with no cavity, therefore medium will not accumulate.- it can be used as double -direction flow. It is very convenient for installation and usage,- Material and flange dimension can be selected by practical working condition.- Actuator: Wrench, Wheel, Worm gear, Pneumatic, Electric.- Connection: Flange, Socket weld, Butt weld. Thread etc.Main Part & MaterialsPart NamesPart MaterialsBodyWCBLCBWC6CF8CF8MCF3CF3MCE8MN/CD4McNValve coverWCBLCBWC6CF8CF8MCF3CF3MCE8MN/CD4McNYokeWCBLCBWC6CF8CF8MCF3CF3MCE8MN/CD4McNPlugWCBLCBWC6CF8CF8MCF3CF3MCE8MN/CD4McNStemF6aF304F6aF304F316F304LF316LA182 F51/F53GlandF6aF304F6aF304F316F304LF316LA182 F51/F53Seat/Seat RingPTFE,RPTFEPackingGraphite/PTFEBonnet GasketSS304+Graphite/SS316+GraphiteBolts/NutsB7/2HL7/4B16/4B8/8B8M/8MB8/8B8M/8MB8M/8MSuitable MediumW.O.G etc.HNO3, CH3OOH etc.Urea etc.Suitable Temperature-29~150 °C-46~150 °C-29~150 °C-196~150 °C-196~150 °C-196~150 °C-196~150 °C-29~150 °CProduct SizeProduct displayCompany  IntroductionFAQQ:Why choose us ?A: we are a manufacturer, we have manufactured valve for over 20 years .B. We have our own casting foundary in a large scaleQ. what is your payment term?  A: T/T , L/C or other acceptable payment. Q:Can we print our logo on your products?A: yes, we offer OEM/ODM service, we support the customized logo, size, package,etc.  Q: what is your main market?A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe Q: Can I get samples from your factory?A: Yes, Samples can be provided. Q: If products have some quality problem, how would you deal with?A: We will responsible for all the quality problems. Q:How about your capacity?A:We have 300staffs,own 50 CNC machines,and five persons  in charge of quality inspection and 5 engineers. Our 6 casting block workshopscan both ensure on time delivery and quality that last.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
