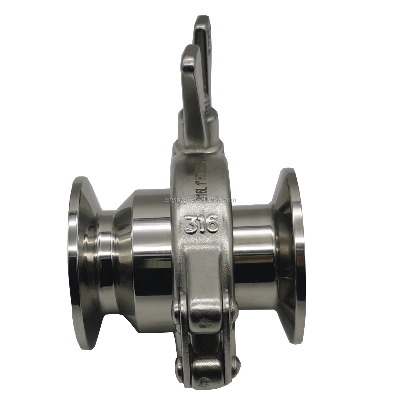

Xusheng Sanitary Stainless Steel Balanced Pressure Thermostatic Steam Trap

Product DescriptionXusheng Sanitary stainless steel balanced pressure thermostatic steam trapThe COMPASS make sanitary balanced pressure thermostatic steam trap is designed to remove condensate from clean and pure steam applications with minimal condensate retention. Manufactured in 316L material, the crevice free body design of UCT-10 incorporates a 12-15 degree angled seat to ensure full drain ability.Steam Trap is a type of automatic valve that filter out condensate and non-condensable gases (such as air) without letting steam escape.It opens, closes or modulates automatically, discharging condensate as soon as it is formed in an energy efficient manner.Our steam trap is a maintainable balanced pressure thermostatic trap used for systems.Large nozzle design can quickly exhaust air,shorten start-up time and avoid blockage.Compact structure,convenient installation and easy maintenance.Internal polishing to prevent bacterial derivation.   Product Parameters    StandardSMS,DIN11850,DIN11851,3AMaterial Contact PartsSS316LProvided with material inspection reportSize1/2",3/4",1"ConnectionTC EndsSeal MaterialPTFE, seals material comply with FDA21CFR117.2600Max. Pressure≤10bar(145psi) at 104°F(40ºC)Working Pressure6bar(87psi)Temperature Range-13 ~329°F(-25 ~ 165ºC)External Surface TreatmentRa32~64uin(o.8~1.6um) or ElectropolishInternal Surface Treatment Ra16~32uin(0.4~0.6um) or Electropolish For more information or any question, please feel freely to contact with us hereS/NNameQtyUnitMaterial1Upper Valve Body1pc316L2Seal1pcPTFE3Clamp1pc316L4Diphragm1pc316L5Bottom Valve Body1pc316LExternal dimensions(mm)Size inchTube ODHH1LDd1/2"12.76114819.425.23/4"19.056114811625.23/4"19.056114811650.51"25.46114812250.5Technical Specifications:Max. pressure: ≤10bar(145psi) at 104°F(40ºC)Working Pressure: 6bar(87psi)Temperature range:-13 ~329°F(-25 ~ 165ºC)Discharge capacity: 1300kg/hr at different pressure 5bargFeature and Advantage1.The free flow of condensed water and its seamless design in true sense maximize the inhibition of bacterial aggregation.2.The feature of "normally open due to faults" minimizes the possibility of shutdown under critical operating conditions3.The valve nozzle design with a large opening can quickly discharge a large amount of air, ensuring fast start-up, preventing blockage, and ensuring continuous operation4.Compact structure, convenient installation, and easy maintenance5.Internal non retention structure, condensate water drainage design, roughness RA
