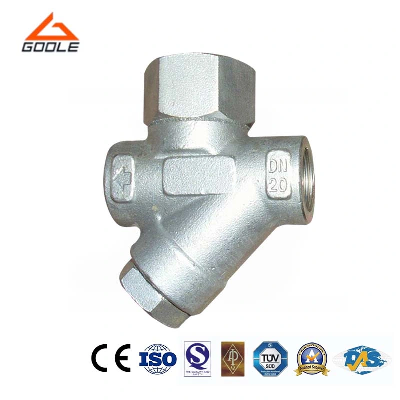

Td32/Td42/Td42f/Td52 Threaded/Flanged Wcb/CF3/CF8m Thermodynamic Steam Trap

TD42/TD42F/TD52 Threaded/Flanged WCB/CF3/CF8M Thermodynamic Steam TrapProduct DescriptionBrief Introduction.TD32/TD42/TD42F/TD52 Steam Trap is a kind of thermodynamic steam trap which is mainly used for the environment with low condensate back  pressure and low capacity requirement, similar to Spirax Sarco Design.Structure PrincipleStructural Characteristic.1.Assembled with steam or air heat preservation mechanism and unaffected by the environmental humidity;with operation frequency decreased, its service life prolonged.2.Provided with filter screen and drainage valve .3.The valve runs flexibly and reliably with large displacement.Working PrincipleWorking Principle.a.When device starts up,under the pressure from inlet,condensed water and air flow into steam trap and lift the disc,discharging condensed water quickly. b.With high temperature condensed water flowing into the steam trap, secondary evaporation will arise,dynamic pressure rise and static pressure down,disc moves downward. c.Meanwhile,secondary evapouration enter above the disc,pushing the disc move downward,stopping steam flowing out d.With secondary evapouration condensing and forming more condensed water,steam trap start a new cycle. ApplicationMain Function.The valve is applicable in the steam pipeline and equipment to avoid steam leakage and eliminate steam leakage in order to conserve energy and keep from water hammer and other faults.Due to their compact design and cost effectiveness thermodynamic steam traps are widely used in applications where the condensate must be removed immediately from steam lines and steam equipment. They discharge the condensate near the saturation temperature.  Field of Application.Product Name: TD42 thermodynamic steam trap.Pressure  Rating: 1.6- 6.4 Mpa.Nominal Diameter: DN15-50 mm.Body Material:  Steel WCB,Stainless Steel.Standard flanges: DIN, ANSI, JIS.Standard Screwed:NPT,BSP.  Product DetailsMaterial of Main Component. Name of componentMaterial of componentValve body, valve coverWCBOthersstainless steelMain External  Dimensions.    Product modelDN(mm)ConnectionDimensionLH1H2TD4215Internal thread80475420Internal thread90525925Internal thread95596232Internal thread10570.589.540Internal thread11070.589.550Internal thread12070.5104.5TD4215Socket welded80475420Socket welded90525925Socket welded95596232Socket welded10570.589.540Socket welded11070.589.550Socket welded12070.5104.5Product ParametersMain Technical Parameters and Indexes of Performance.Nominal pressurePN63Maximun design pressure(PMA)63bar gMaximun design temperature(TMA)400Minimun design temperature(TMI)-10Maximun upstream pressure for saturated steam service(PMO)42bar gMaximun operating temperature(TMO)400Minimun operating temperature(TMIO)0Minimun differential pressure( PMiX )0.25barMaximum cold hydraulic test pressure95bar g  View of the factory    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
