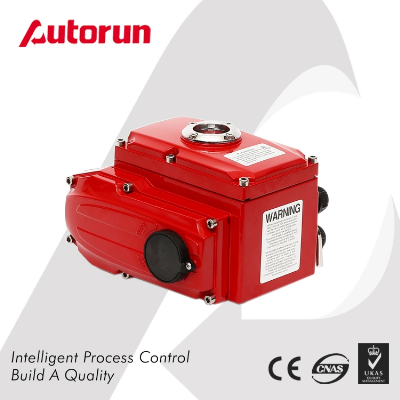

PRODUCT DETAILSChinese Wenzhou supplier shutoff Quarter Turn Electric ActuatorODL Series are compact, intelligent quarter turn electric actuators for the accurate control of valves with torques up to 2000 N.m. ODL is designed for on/off or modulating control of butterfly, ball, rotary plug valves or dampers in a wide range of heavy industrial, chemical and petrochemical plants, water treatment plants, on and offshore. It can be driven by 380V/220V/110V AC power or 24V/110V DC power, inputs 4-20mA current signal or 0-10V DC voltage signal as control signal. (CE certificate approved). Technical dataModelMax output torqueOperating time to 90°Output axisMotorSingle-phase rated current (220V 50HZ)Handwheel turnWeightNmSmmWANKgODL-003303011*11/Ф1580.1552.2ODL-005503014*14/Ф20100.25103.6ODL-008803014*14/Ф20100.25103.6ODL-01010030/4017*17/Ф20150.357.54.6ODL-01515030/4017*17/Ф25150.377.54.6ODL-0202003027*27/Ф42450.34813ODL-0303003027*27/Ф42450.314813.4ODL-0404003027*27/Ф42600.334813.8ODL-0606003027*27/Ф42900.334814ODL-0808004527*27/Ф421800.474814.3ODL-1001000135Max Ф651800.4713060ODL-1601600135Max Ф651800.8513060ODL-2002000135Max Ф651800.8513060 Actuator CoverAluminum alloy, waterproof level: IP67/68, or NEMA 4/6 Power supply110/220V AC, 1 Phase; 380/440V AC, 3 Phase; 50/60HZ, ±10% Power supply of Control110/220V AC, 1 Phase; 50/60HZ, ±10% MotorSquirrel-cage Asynchronous Motor Limit Switch2* on/off, SPDT, 250V AC, 10A Auxiliary Limit Switch2* on/off, SPDT, 250V AC, 10A Stroke90° ± 10°Option: 0° - 270°Failure Protection TemperatureInternal thermal protection; On: 120°C ± 5°C, off: 97°C ± 15°C IndicatorContinuous position indicate Manual OperationMechanical handle (option: handwheel) Self-lock DeviceSelf-lock by worm and worm gear Mechanical LimitExternal adjusting bolts (2 pieces) Heater and Thermostat7-10W (110/220V AC), Anti-condensation Connecting holeM18 (2 pieces) Ambient Temperature-20°C ~+70°C LubricationAluminum-base grease (EP type) MaterialSteel, Aluminum alloy, Aluminum bronze, Polycarbonate Ambient HumidityMax 90% RH Anti-vibrationX Y Z 10g, 0.2~34HZ, 30 minutes External CoatingDry powder, Epoxy polyester Chinese Wenzhou supplier shutoff Quarter Turn Electric ActuatorChinese Wenzhou supplier shutoff Quarter Turn Electric Actuator /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
